点击放大查看

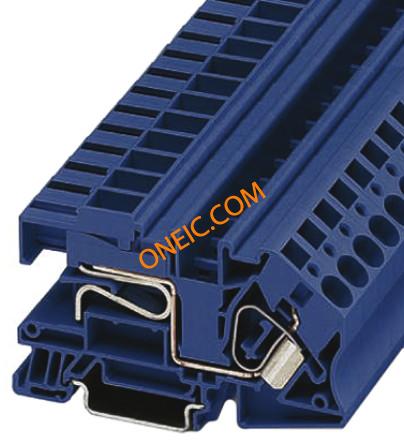

3038244
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks STN 10 Conn Installation Level Terminal Blocks F 2 POS 57A CONN TERM BLOCK TB,Spring-cage,Width:10mm,blue Installation level terminal block STN 10 STN10 Phoenix Contact STN Clipline 系列 蓝色 弹簧笼 , 57A, 400 V |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE ST |
| 其他名称 | STN 10 | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - IEC | 57A | IEC电压 | 400V |
| 额定电压 | 400 V | 最大额定电流 | 57 A |
| 最小输入电压 | 400V | ||
机械参数
| 颜色 | Blue | 深度 | 10 |
| 宽度 | 10 mm | 高度 | 57.5 |
| 长度 | 87 mm | 重量 | 1.167568 oz |
| 导线线规 | 24 | 端接方式 | Spring Cage |
| 高度（最大） | 2.264" (57.50mm) | 外壳颜色 | Blue |
| 安装类型 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 87 |
| 剥线长度（范围） | 18mm | 端子宽度 | 10.0mm |
| 端接排数 | 弹簧笼 | 端接样式 | Special, Hybrid |
| 连接器颜色 | Blue | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 24-6 | 线规或范围 - mm² | 6 |
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | STN | 叠层数 | 单层 |
| 层数 | 1 | ||
