3037805
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks STTBS 2.5-L/N Conn Feed-Through Modular Terminal Blocks F 4 POS 22A CONN TERM BLOCK Feed-through modular terminal block STTBS 2,5-L/N STTBS25-L/N |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE ST |
| 其他名称 | STTBS 2 5-L/N | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - IEC | 22A | IEC电压 | 500V |
| 额定电压 | 500 V | 最大额定电流 | 22 A |
| 最小输入电压 | 500V | ||
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 宽度 | 5.2 mm | 高度 | 55 mm, 62.5 mm |
| 长度 | 78 mm | 重量 | 0.401770 oz |
| 导线线规 | 12-28 | 安装类型 | NS 35/7.5, NS 35/15 |
| 安装样式 | DIN Rail | 排数 | 4 |
| 壳体材料 | Polyamide | 总长度 | 78 |
| 剥线长度（范围） | 10mm | 端子宽度 | 5.2mm |
| 端接样式 | Push-In | 触点数 | 4 |
| 位数 | 4 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 28-12 | 线规或范围 - mm² | 0.08-4mm² |
产品信息
| 类型 | Feed Through | 连接器性别 | F |
| 系列 | ST | 层数 | 2 |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0818108
Phoenix Contact
Unspecified Tools & Accessories UC-TM 5 UNICARD 90 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=96 LABELS Phoenix Contact 0818108 Marker Card Terminal Block, Series: UC-TM Terminal Block Tools & Accessories UC-TM 5 UNICARD 90 SECTION MarkerCard;TermBlk;5.2mm;96labelspercard;white Phoenix Contact UC-TM 系列 标记卡
3039900
Phoenix Contact
Terminal Block Tools & Accessories ST-IL Operating Decal For The St Terminal Block DECAL FOR ST TERM BLOCK Mounting material ST-IL Operating decal for the ST terminal block ST-IL
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3030190
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-5 5 POS BRIDGE Conn Jumper PL 5 POS ST CROSS CONN BRIDGE TERM BLK 5POS Phoenix Contact 3030190 Jumper BRIDGE, PLUG IN Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact 5 极跳片
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS

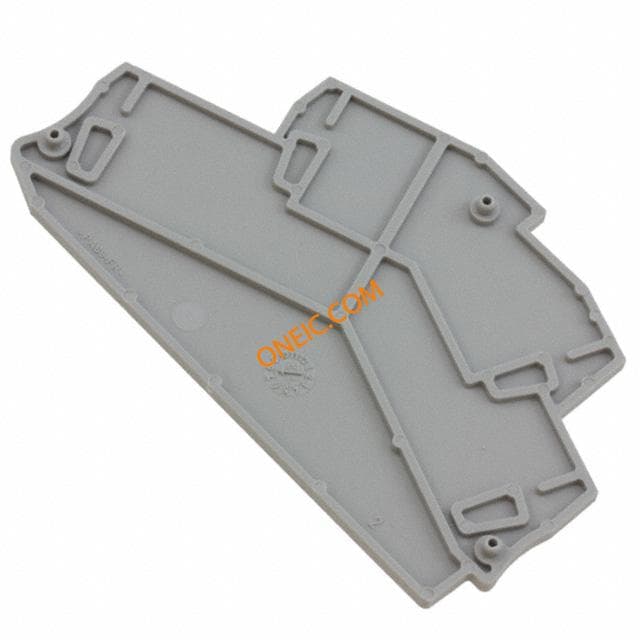

3038503
