点击放大查看

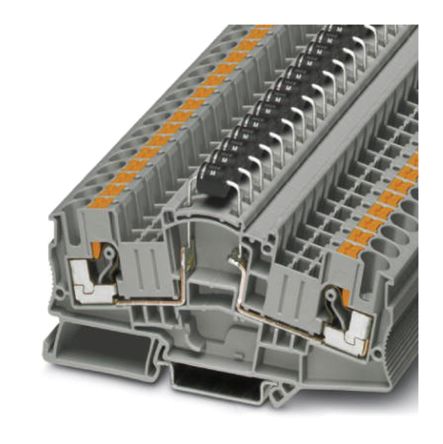

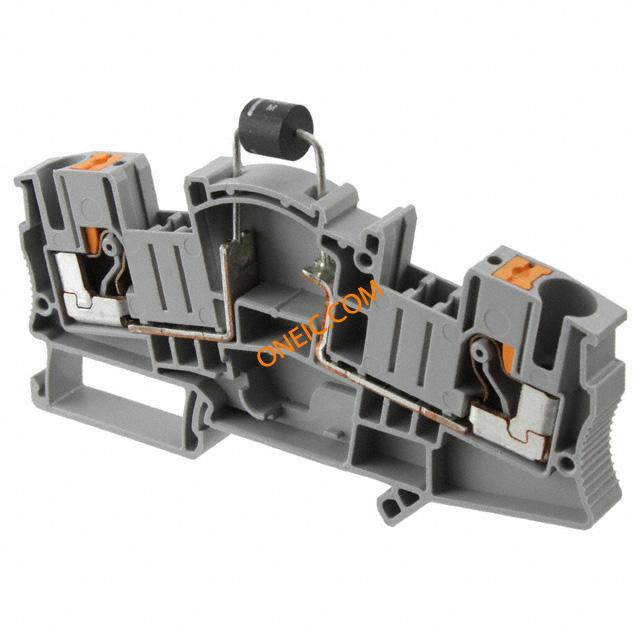

3035698

制造商	Phoenix Contact GmbH & Co. KG
描述	CONN TERM BLK FEED THRU 8.2MM DIN Rail Terminal Blocks PTME 6-DIO/R-L HV PTME6-DIO/R-LHV Component Terminal Block
分类	连接器解决方案接线端子DIN导轨接线端子

对参数有疑问？问 AI 助手

商业参数

商标名

CLIPLINE PT

标准包装数量

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

电流 - UL	10A	UL电压	600V
电流 - IEC	5A	IEC电压	1000V
额定电压	1 kV	最大额定电流	5 A

机械参数

颜色	Gray	宽度	8.2 mm
高度	60 mm, 67.5 mm	长度	100.8 mm
导线线规	20	排数	1
壳体材料	Polyamide (PA)	剥线长度（范围）	12mm
端子宽度	8.2mm	端接排数	推入式
端接样式	Push In, Spring	触点数	2
位数	2	绝缘材料 - 材质	Polyamide (PA), Nylon
线规或范围 - AWG	8-20 AWG	线规或范围 - mm²	0.5-10mm²

产品信息

类型	Feed Through	系列	PT
产品特性	Diode	层数	1
