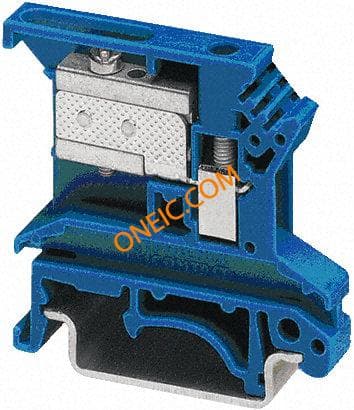

3032004
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UKN 2.5 BU Conn Disconnect Modular Terminal Blocks F 2 POS Screw 32A CONN TERM BLOCK UKN25BU |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 商标名 | CLIPLINE UK |
| 其他名称 | UKN 2 5 BU | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 电流 - IEC | 24A | IEC电压 | 400V |
| 额定电压 | 400 V | 最大额定电流 | 32 A |
| 最小输入电压 | 400V | ||
机械参数
| 颜色 | Blue | 深度 | 6.2 |
| 宽度 | 6.2 mm | 高度 | 49.5 |
| 长度 | 43.5 mm | 重量 | 3.858 lbs |
| 导线线规 | 24 | 端接方式 | Screw |
| 高度（最大） | 1.949" (49.50mm) | 外壳颜色 | Blue |
| 安装类型 | DIN Rail | 排数 | 2 |
| 壳体材料 | Polyamide | 总长度 | 43.5 |
| 剥线长度（范围） | 7mm | 端子宽度 | 6.2mm |
| 端接样式 | Special, Hybrid | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 24-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | UK | 层数 | 1 |
