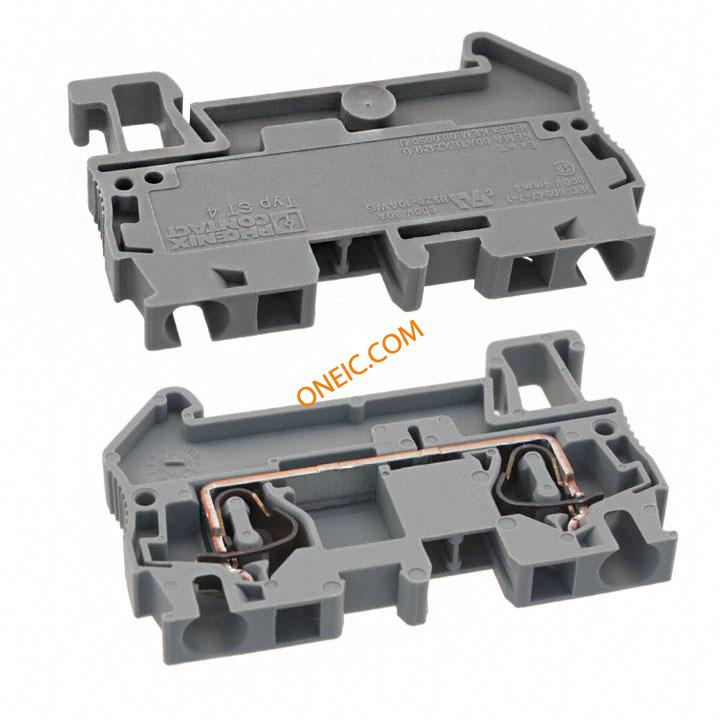

点击放大查看
3031364
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks ST-4 Conn Feed-Thru F 2 POS ST 40A CONN TERM BLK MOD 28-10AWG T/H Non-Fuse DIN Rail Terminal, 41A, 800V, Grey ,Spring Termination Conn;TermBlk;FeedThru;1;2;20-10AWG;600V;30A;8KV;PA;10mm Splice terminal: rail; ways:1; terminals:2; grey; 0.08÷4mm2; TS35 Phoenix Contact ST 系列 灰色 标准 DIN 导轨端子 , 41A, 800 V |
| 分类 |
商业参数
| 商标名 | CLIPLINE ST | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | cULus,VDE | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 800V |
| 测试电压 | 8kV | 额定电压 | 800 V |
| 极数 | 2Poles | 连接器阻抗 | rail |
| 最大额定电流 | 41A | 最小输入电压 | 800V |
| 保护电压（VP）（2416） | 8kV | ||
机械参数
| 颜色 | Gray | 深度 | 5.2 |
| 宽度 | 6.2 mm | 高度 | 44 mm |
| 长度 | 56 mm | 重量 | 0.303709 oz |
| 导线线规 | 28 → 10 AWG | 端接方式 | Spring |
| 基体材料 | polyamide | 安装类型 | Straight |
| 电缆材料 | 0.2 → 6mm² | 安装导轨 | TS35 |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 56 | 包装数量 | 50 |
| 主要材料 | DINRail | 尺寸/外形 | 56mmLx6.2mmWx44mmH |
| 剥线长度（范围） | 10mm | 端子宽度 | 6.2mm |
| 端接排数 | 弹簧 | 插针孔直径 | 5.2mm |
| 端接样式 | Push In, Spring | 导线剥线长度 | 10mm |
| 连接器颜色 | Grey | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-28 AWG | 线规或范围 - mm² | 0.08-6mm² |
| 触点镀层厚度 - 柱 | 6.2mm | ||
产品信息
| 制造商 | 0.08-6mm² | SPG | 50 |
| 类型 | Feed-Thru | 连接器性别 | F |
| 系列 | ST | 单元数量 | 1 |
| 叠层数 | 单层 | 层数 | 1 |
| 基础产品编号 | ST-4 | ||
