点击放大查看
3010217
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UKH 240 Conn Universal Terminal Blocks F 2 POS Screw 415A FEED-THRU TERM BLOCK 36MM Feed-through modular terminal block UKH 240 TerminalBlock;Feed-through;ScrewConn.;2/0AWG |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 380A | UL电压 | 600V |
| 电流 - IEC | 415A | IEC电压 | 1000V |
| 额定电压 | 1 kV | 最大额定电流 | 415 A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 36 |
| 宽度 | 36 mm | 高度 | 131.5 |
| 长度 | 100 mm | 重量 | 1.049 lbs |
| 导线线规 | 2 | 端接方式 | Screw |
| 安装样式 | DIN Rail | 壳体材料 | Polyamide |
| 总长度 | 100 | 剥线长度（范围） | 40mm |
| 端子宽度 | 36.0mm | 端接样式 | Screw |
| 触点数 | 2 | 位数 | 2 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 500 MCM (kcmil)-2/0 AWG |
| 线规或范围 - mm² | 70-240mm² | ||
产品信息
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UK | 层数 | 1 |
文档与媒体
相关型号
0201401
Phoenix Contact
Terminal Block Tools & Accessories EB 2-36/UKH CONN/JUMP FOR MOD TERM BLCK 2POS Conn Jumper M 2 POS ST
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
1004513
Phoenix Contact
Terminal Block Tools & Accessories WS-2K Labels Warning Label Polyethylene Yellow 32x26mm LABEL WARNING ADHESIVE 32X36MM Adhesive warning plate, self-adhesive, black print: lightning flash with mixed verson - "Vorsic WS-2K Warning Label
1201662
Phoenix Contact
ターミナルブロック・ツールとアクセサリ END BRACKET Connector Accessories End Bracket for End Support Straight Aluminum Silver DINRAIL END BRACKET W/2 SCREWS Phoenix Contact 1201662 End Clamp Terminal Block, Series: E/AL-NS End bracket E/AL-NS 35 Terminal Block Tools & Accessories END BRACKET CONNECTOR ACCESSORIES EndBracket;TermBlk;DINRail;10mm;59mmL;forUKH50-UKH240 Phoenix Contact E/AL-NS 系列 端夹
1206586
Phoenix Contact
取り付け用金具類 NS 35/15 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware NS 35/15 ZN UNPERF 2000MM DINrail,material:Galvanized,unperforated,2MeterLength DIN 导轨 顶帽式, NS35 无孔型, 2000mm x 35mm x 15mm
1201659
Phoenix Contact
Terminal Block Tools & Accessories E/AL-NS 32 End Clamp, For End Support Of UKH 50 - UKH 240 DINRAIL END BRACKET W/2 SCREWS End bracket E/AL-NS 32 EndBracket;TermBlk;DINRail;10mm;63.5mmL;forUKH50-UKH240
1201895
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Copper, Unperforated, 1.5mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM UNSLOT 2M NS35/15CUUNPERF2000MM
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
1201730
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM SLOTTED 2M MountingRail,Perforated,35x15mm,eachpieceis2meters
1201002
Phoenix Contact
Mounting Hardware NS32 PERF 2 METER PRICED PER METER G-Profile DIN Rail, Material Steel, Perforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32MMX15MM SLOTTED 2M Accessories, Zack strip, unprinted, strips with 10 labels for individual labeling with M-PEN or CMS system, for terminal block width: 6.2 mm, color: white G-profileDINrail,Steel,perforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 多孔型, 2000mm x 32mm x 15mm
0811862
Phoenix Contact
Terminal Block Tools & Accessories ZB 22:UNBEDRUCKT ZACK MARKER STRIP UNPRINT 4-SEC Connector Accessories Zack Marker Strip Polyamide White Terminal Marker

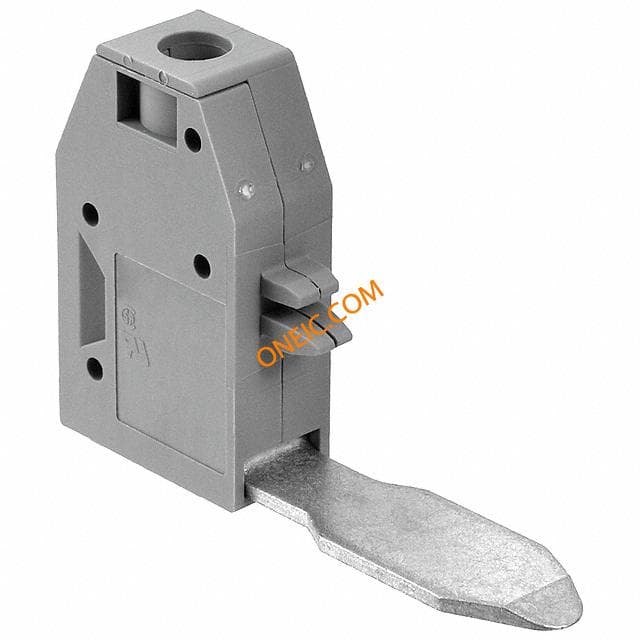

3003554
