点击放大查看
2320225
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DC/DC Converters UPS/24DC/24DC/10 QUINT UBS DC Din Rail 24VDC UPS 24VDC 10A DIN RAIL Power Supply UPS 24Vdc/24Vdc, 10A UPS - Uninterruptible Power Supplies UPS/24DC/24DC/10 QUINT QUINT-UPS/24DC/24DC/10 Phoenix Contact DIN 导轨安装 UPS 不间断电源 , 24V dc输入, 24V dc输出 |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | QUINT POWER |
| 子类别 | Not Specified | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构标志 | cUL/cULus/UL | ||
电气参数
| 输出端 | PluggableScrew | 操作方式 | Switching |
| 效率 | 98(Min) | 输入类型 | PluggableScrew |
| 输出类型 | Screw Terminal Block | 电源输入 | No |
| 输出功率 | 240 W | 额定电压 | 24VDC |
| 供电电压 | 18-30VDC | 输出数量 | 1 |
| 最小输入电压 | 18 VDC to 30 VDC | 典型输入电压 | 24VDC |
| 输出电流/通道 | 10 A | ||
机械参数
| 尺寸 | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | 深度 | 125mm |
| 宽度 | 35mm | 长度 | 130mm |
| 重量 | 1.1 lbs (499g) | 第一连接器 | Screw Terminal Block |
| 安装类型 | DIN Rail | 安装样式 | DIN Rail |
| 总长度 | 125 | 尺寸/外形 | 130 x 35 x 125mm |
| 外壳尺寸-插件 | 130 | 连接器 - AC输入 | Hardwired |
| AC输出连接器 | Hardwired | ||
产品信息
| 外形 | Din Rail | 类型 | DC |
| 样式 | Din Rail | 系列 | QUINT-UPS |
| CAD图纸 | 3D CAD 模型 | 制造商全称 | QUINT |
| 基础产品编号 | QUINT-UPS/24DC/24DC/10 | ||
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | 运行时间（小时） | 3 h |
| 防护等级 | IP20 | 工作温度 | -25°C |
| 最大负载后备时间 | 2Hr. | 最高温度限值 | +70°C |
相关型号

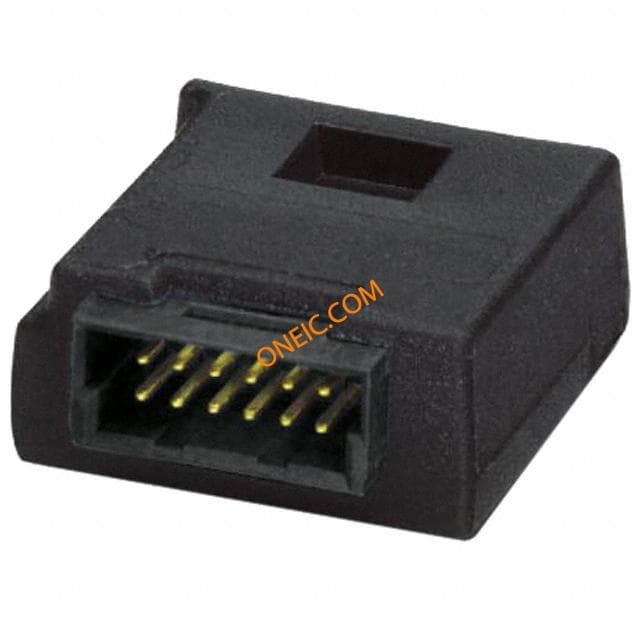

2986122
Phoenix Contact
Terminal Block Tools & Accessories IFS-CONFSTICK Multi-Functional Memory Block For The Interface Systemf For Easystorage And Backup Of The Configuration MEMORY MODULE FOR TRIO UPS IFS-CONFSTICK MULTI-FUNCTIONMEMORYMODULEFORTHEINTERFACESYSTEM;FOREASYSTORAGEANDBACK Phoenix Contact Memory Block, 使用于 SF4B 系列光幕、SF-C13 控制装置

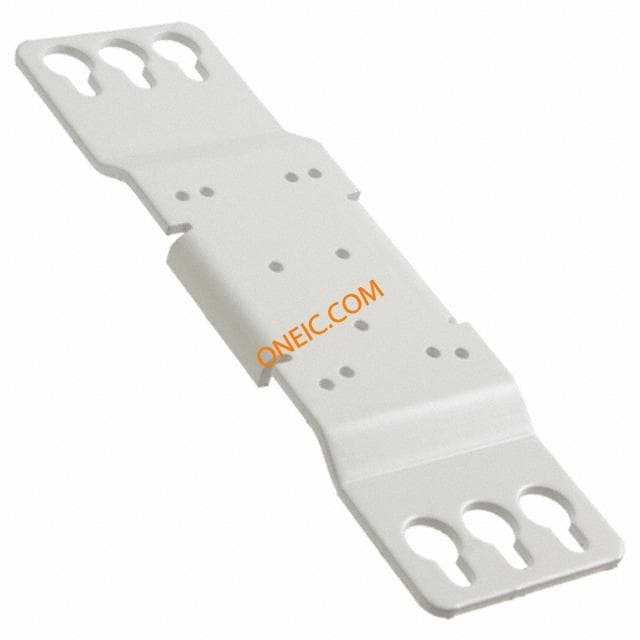

2938235
Phoenix Contact
Linear and Switching Power Supplies UWA 182/52 WALL MNT TRIO/QUINT Universal Wall Adapter UNIVERSAL WALL ADAPTER Universal wall adapter UniversalWallAdapter(usedforQuint-DC-UPS)UWA182/52

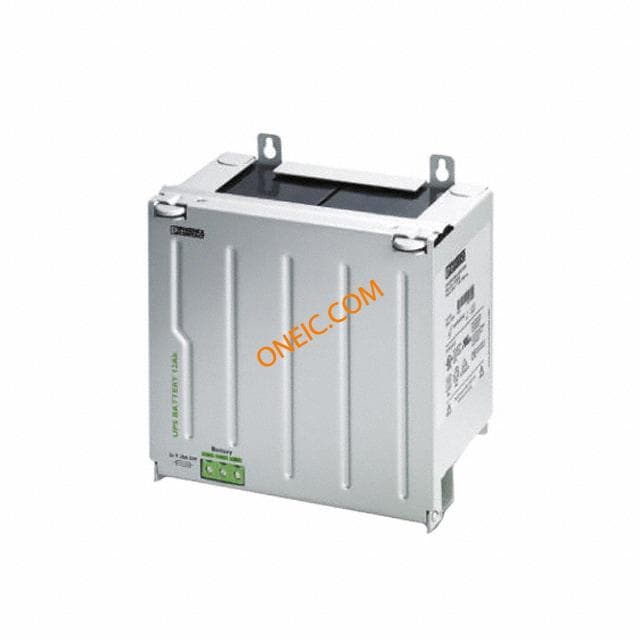

2320322
Phoenix Contact
DC/DC Converters VRLA/24DC/12AH QUINT UPS-BAT/VRLA/ 24DC/12AH RECHARGEABLE BATT MODULE 24VDC UPS-BAT/VRLA/24DC/12 AH Sealed Lead Acid Battery VRLA/24DC/12AH QUINT UPS-BAT/VRLA/24DC/12AH Phoenix Contact UPS 电源, 110 x 202 x 202mm, 使用于UPS

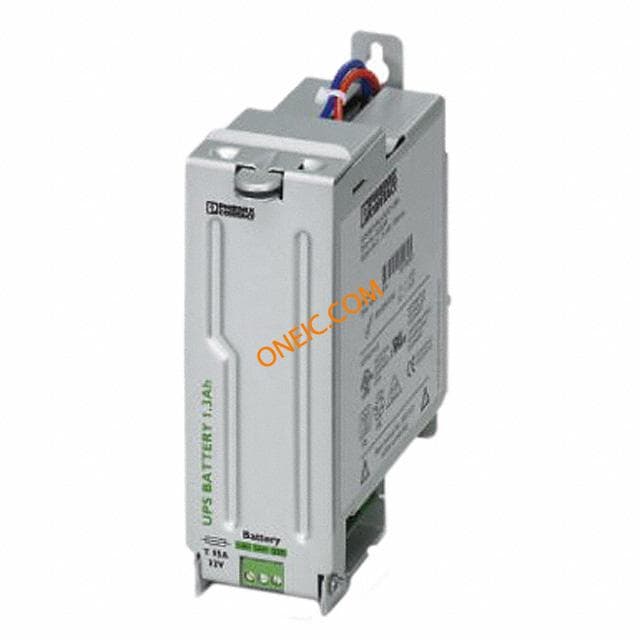

2320296
Phoenix Contact
Battery Packs UPS-BAT/VRLA/ 24DC/ 1.3AH POWER STORAGE DEVICE, LEAD AGM, VRLA TECHNOLOGY, 24 V DC, 1.3 AH, TOOL-FREE BATTERY REPLACEMENT RECHARGEABLE BATT MODULE 24VDC UPS-BAT/VRLA/24DC/ 1.3 AH Sealed Lead Acid Battery UPS-BAT/VRLA/ 24DC/ 1.3AH Power Storage Device UPS-BAT/VRLA/24DC/1.3AH Phoenix Contact UPS 电源, 113 x 54 x 157mm, 使用于UPS

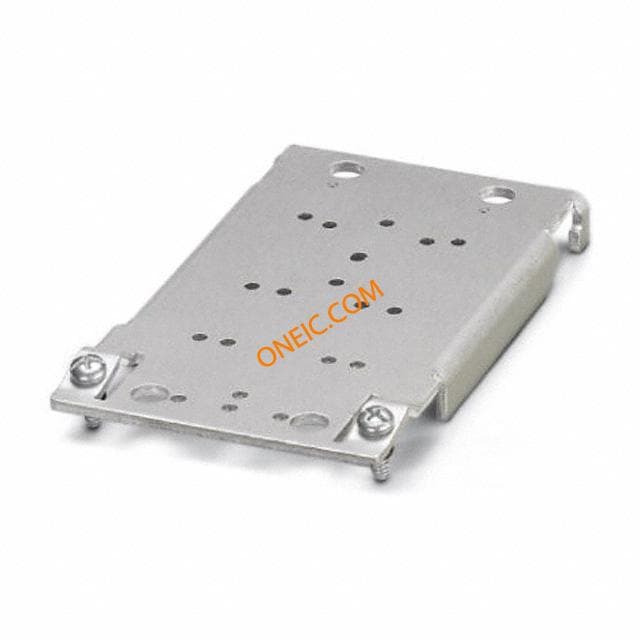

2938196
Phoenix Contact
DIN Rail Power Supplies ASSY ADAPTER Assembly Adapter For Quint Power 2.5 A And 5 A On S7300 Rail ASSEMBLY ADAPTOR QUINT-BS Assembly adapters QUINT-PS-ADAPTERS7/1 QUINT-PS-ADAPTER-S7/1

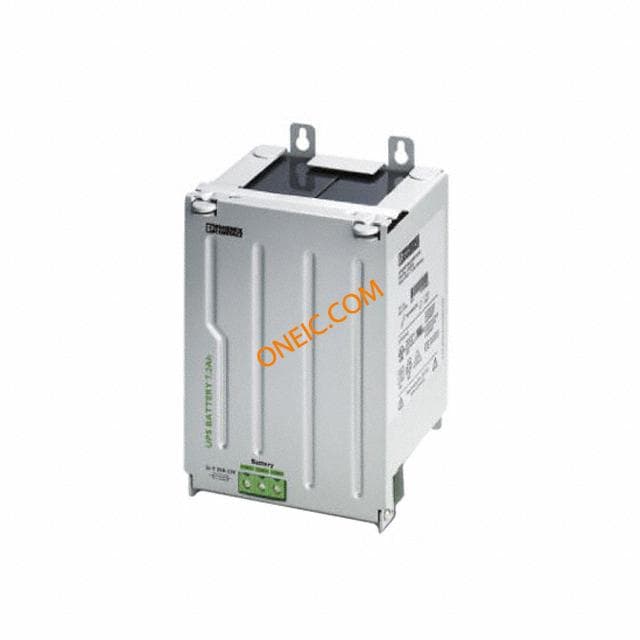

2320319
PHOENIX CONTACT
Rectangular 7.2Ah Rechargeable RECHARGEABLE BATT MODULE 24VDC UPS-BAT/VRLA/24DC/ 7.2 AH Sealed Lead Acid Battery VRLA/24DC/7.2AH QUINT UPS-BAT/VRLA/24DC/7.2AH Phoenix Contact UPS 电源, 110 x 135 x 202mm, 使用于UPS

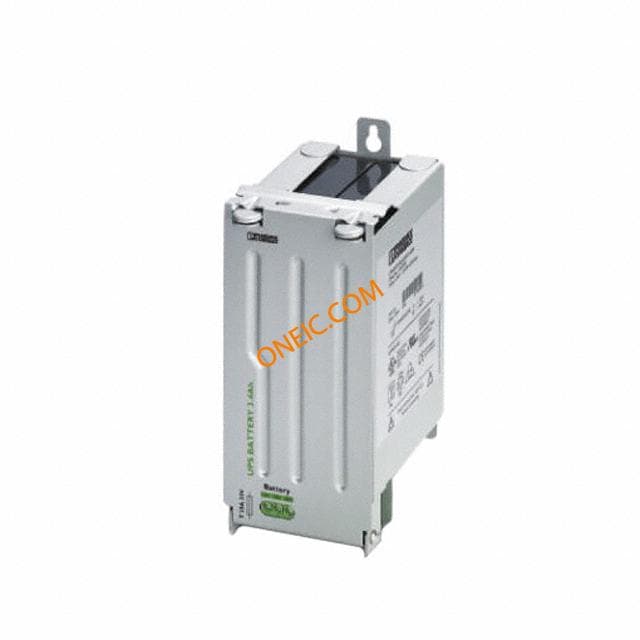

2320306
