1914629
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks DFK-MSTB 2.5/ 3-G- 5,08 BK Misc Products TERM BLOCK DFK-MSTB25/3-G-508BK |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 其他名称 | DFK-MSTB 2 5/ 3-G-5 08 BK | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 宽度 | 1.400" (35.56mm) | 重量 | 5.820204 oz |
| 接触镀层 | Tin | 安装样式 | Panel / Box - Feed Through |
| 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) | 面板安装类型 | Screw Mount - Front Flange |
| 触点数 | 3 | 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet |
| 前面板接线方式 | Header, Male Pins | ||
产品信息
| 系列 | DFK-MSTB | 产品特性 | Lock Opening |
| 层数 | 1 | 每层位数 | 3 |
相关型号
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL
1759990
Phoenix Contact
Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 BK HEADER NOMINAL CURRENT 12A NUMBER OFPOSITIONS 3 TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508BK
1902738
Phoenix Contact
Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 ABGY TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508ABGY
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
0708263
Phoenix Contact
Terminal Block Tools & Accessories HDR HDWR FOR 5.08mm ORDER QTY 2 PER HDR Connector Accessories Screw Set HDWR SET 3X10 SCREW/WASHER/NUT
5030172
Phoenix Contact
Terminal Block Tools & Accessories LOCKING LATCH Connector Accessories Locking Latch Red LOCKING LATCH RED MSTB PCB terminal stop notches DFK-MSTB-R

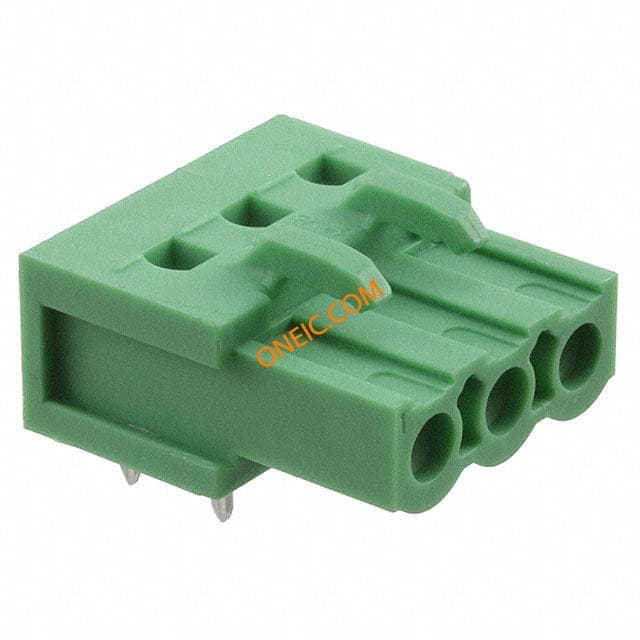

1786417
