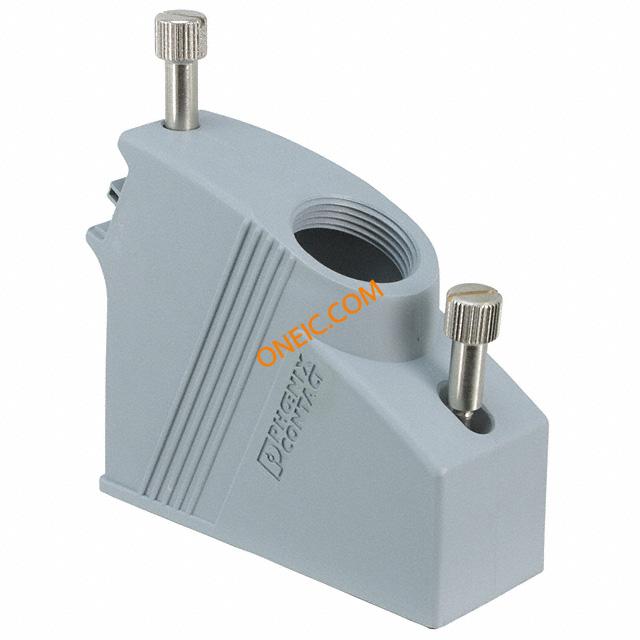

1855120
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Cable Mounting & Accessories VC-K-T3-R-M25 Connector Accessories Sleeve Housing Polyamide SLEEVE HOUSING VC3 CABLE M25 Housing VC-K-T3-R-M25 VC-K-T3-R-M25 Phoenix Contact VC3 系列 套管外壳 , M25螺纹 |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Cable Mounting & Accessories |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | 96 mm x 33 mm x 75 mm | 高度 | 33 |
| 长度 | 96 mm | 重量 | 3.174657 oz |
| 材料（通用） | Polyamide (PA) | 包装方式 | Bulk |
| 螺纹尺寸 | M25 | 连接器类型 | Hood |
| 壳体材料 | Polyamide (PA), Nylon | 总长度 | 96 |
| 尺寸/外形 | 3.780" L x 1.299" W x 2.953" H (96.00mm x 33.00mm x 75.00mm) | ||
产品信息
| 类型 | Housing, Sleeve | 样式 | Thru Type |
| 系列 | VC3 | 锁定位置 | Screw Locks on Hood |
| 附件类型 | 套管外壳 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 80°C |
