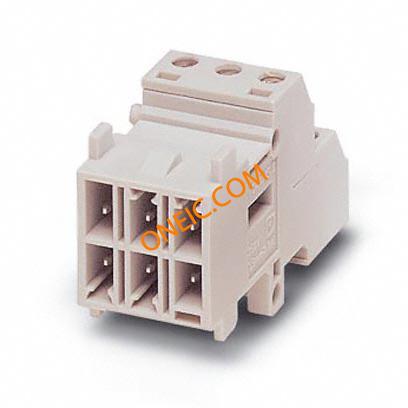

1854019
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors VC-AMS 6 Conn Terminal Block M 6 POS 5mm Screw RA Panel Mount 10A CONN CONTACT 6POS SCREW CLAMP CONTACTINSERTMODULE6-POS.,250V10A |
| 分类 |
商业参数
| 商标名 | PLUSCON Device | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 8A |
| 最小输入电压 | 250V | ||
机械参数
| 深度 | 34.6 | 间距 | 5 |
| 高度 | 22 | 重量 | 0.285366 oz |
| 包装方式 | Bulk | 导线线规 | 16-28 |
| 端接方式 | Screw | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyamide | 总长度 | 15 |
| 端接样式 | Screw | 触点数 | 6 |
| 位数 | 6 | 线规或范围 - AWG | 30-14 |
产品信息
| 类型 | Terminal Block | 连接器性别 | M |
| 产品子类型 | Accessories | ||
环境参数
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
1734634
Phoenix Contact
Terminal Block Tools & Accessories CODING SECTION CP-MSTB Connector Accessories Coding Section Is Inserted Into The Slot On The Plug Or Inverted Header Red TERM BLK PLUG CODE SECTION RED CP-MSTB KEYINGPROFILE,REDINSULATINGMATERIAL

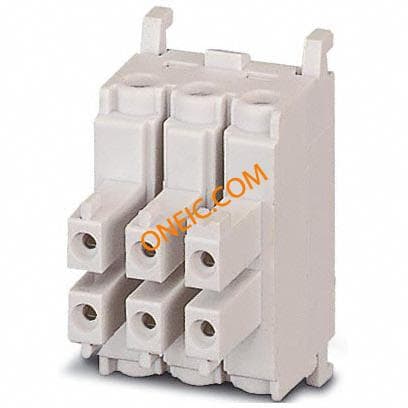

1853476
