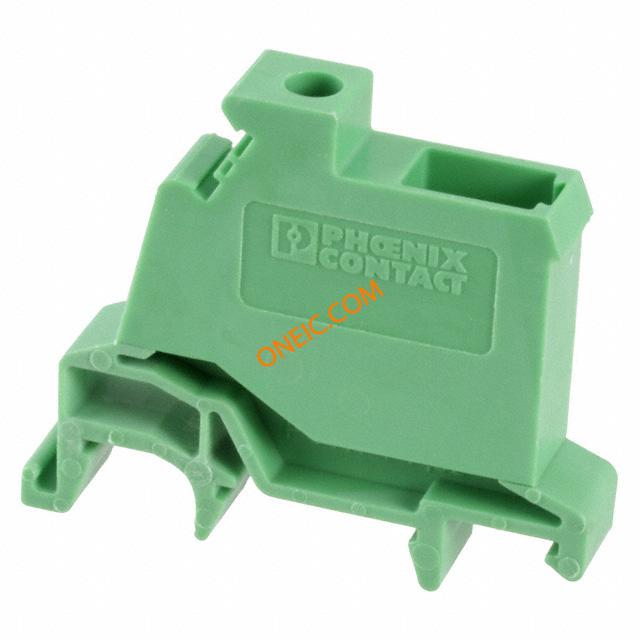

1849998

点击放大查看

1849998

制造商
Phoenix Contact GmbH & Co. KG
描述DINレール・ターミナルブロック PCVK 4-7 62 Conn Terminal Block F 1 POS Screw ST 20A PLUG TERM BLOCK 7.62MM 1POS Plug-in block for DIN rail mounting PCVK 4-7,62 DIN Rail Terminal Blocks PCVK 4-7 62 Din-Railterminalblock,Plug,20A,630V,1Position,ScrewConnection
分类
连接器解决方案接线端子DIN导轨接线端子
对参数有疑问？问 AI 助手

商业参数

商标名COMBICON Power产品类别DIN Rail Terminal Blocks
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL94 V-0

电气参数

电流 - UL20AUL电压600V
电流 - IEC20AIEC电压600V
额定电压160 V最大额定电流8 A
最小输入电压630V

机械参数

颜色Green深度41.2
间距7.62 mm宽度7.6 mm
高度63.4长度1.622" (41.20mm)
重量3.307 lbs导线线规30
端接方式Screw高度（最大）1.433" (36.40mm)
外壳颜色Green安装类型Straight
接触镀层Tin安装样式DIN Rail
排数1壳体材料Polyamide
总长度7.62剥线长度（范围）10mm
端子宽度7.62mm端接样式Plug Receptacles, Screw
触点数1位数2
绝缘材料 - 材质Polyamide (PA), Nylon线规或范围 - AWG12-24 AWG
线规或范围 - mm²0.2-4mm²

产品信息

类型Terminal Block连接器性别F
层数1

文档与媒体

PDF 文档
1849998
在线文档
pdf

相关型号

1804988

1804988

Phoenix Contact

Pluggable Terminal Blocks PC 4/10-ST-7 62 Conn Terminal Block F 10 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 10POS STR 7.62MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 400V PC4/10-ST-762

¥96.4920
详情
暂无图片

1730320

Phoenix Contact

Pluggable Terminal Blocks PC 4/ 3-STF-7.62 BK Misc Products TERM BLOCK PLUG 3POS STR 7.62MM PC4/3-STF-762BK

¥28.8320
详情
1804904

1804904

Phoenix Contact

プラグ着脱可能ターミナルブロック 2P 7.62mm PLUG PC 4/ 2-ST-7 62 Conn Terminal Block F 2 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 2POS STR 7.62MM PC 4/ 2-ST-7,62 Pluggable Terminal Blocks 2P 7.62mm PLUG PC 4/ 2-ST-7 62 Conn Terminal Blocks F 2 POS 7.62mm Screw RA Cable Mount 20A PC4/2-ST-762 Terminal block; plug; female; straight; 7.62mm; ways:2; 20A; 300V Phoenix Contact PC 系列 7.62mm 节距 2 路 母 绿色 印刷电路板连接器, 螺钉端接

¥12.0201
详情
1848915

1848915

Phoenix Contact

プラグ着脱可能ターミナルブロック 4P 7.62mm 180DEG Conn Terminal Block F 4 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 4POS STR 7.62MM Conn Terminal Blocks F 4 POS 7.62mm Screw RA Cable Mount 20A Conn;TermBlk;PCB;Plug;4;7.62mm;24-10AWG;20A;800V

¥39.9160
详情
1804920

1804920

Phoenix Contact

プラグ着脱可能ターミナルブロック 4P 7.62mm Conn Terminal Block F 4 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 4POS STR 7.62MM Non-Fused Terminal Block Cable Mount 4 Way, Screw Down, 400V Pluggable Terminal Blocks 4P 7.62mm PC4/4-ST-762 Terminal block; plug; female; straight; 7.62mm; ways:4; 20A; 300V Phoenix Contact 4 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 400 V

¥38.6240
详情
1201798

1201798

Phoenix Contact

取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail

¥119.9520
详情
1804946

1804946

Phoenix Contact

Pluggable Terminal Blocks 6P 7.62mm Conn Terminal Block F 6 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 6POS STR 7.62MM Non-Fused Terminal Block Cable Mount 6 Way, Screw Down, 400V Conn;TermBlk;Plug;6;7.62mm;24-12AWG;Green;20A;400V Terminal block; plug; female; straight; 7.62mm; ways:6; 20A; 300V Phoenix Contact 6 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 400 V

¥57.8000
详情
1804917

1804917

Phoenix Contact

Pluggable Terminal Blocks PC4/3-ST-7.62 Conn Terminal Block F 3 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 3POS STR 7.62MM Conn;TermBlk;PCB;Plug;Screw;3;7.62mm;24-10Awg;Green;20A;400V;M3 Terminal block; plug; female; straight; 7.62mm; ways:3; 20A; 300V Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 1000 V

¥21.6506
详情
1804933

1804933

Phoenix Contact

Pluggable Terminal Blocks PC 4/ 5-ST-7 62 Conn Terminal Block F 5 POS 7.62mm Screw RA Cable Mount 20A TERM BLOCK PLUG 5POS STR 7.62MM Printed-circuit board connector PC 4/ 5-ST-7,62 Conn Terminal Blocks F 5 POS 7.62mm Screw RA Cable Mount 20A PLUGCOMPONENT,PITCH:7.62MM,POS5

¥34.9685
详情

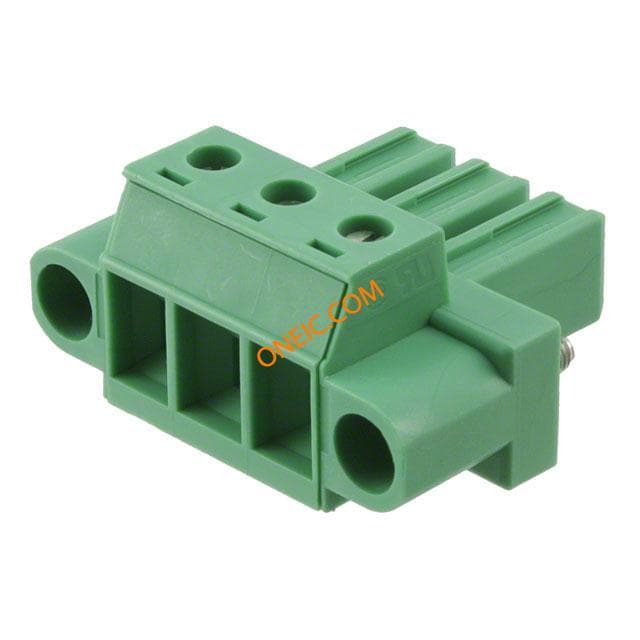

1828252
