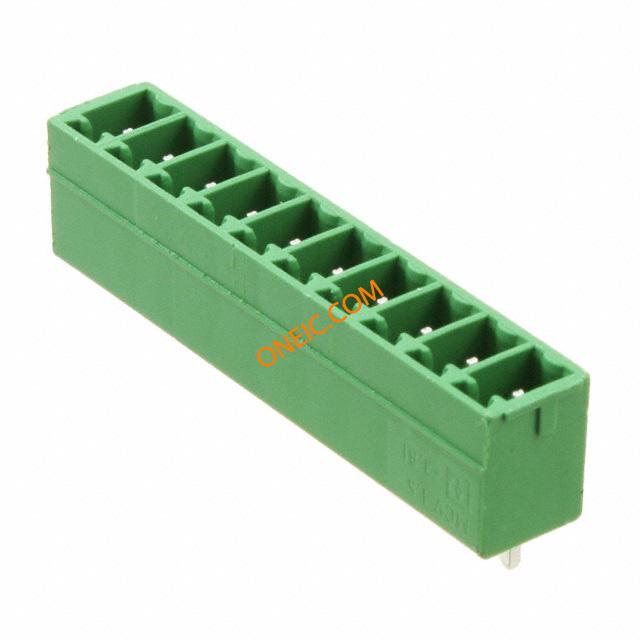

1803507

点击放大查看

1803507

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 3.81 10P HEADER 180D Conn Shrouded Header HDR 10 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 10POS VERT 3.81MM Phoenix Contact MCV Series 3.81mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 8A Conn Shrouded Header HDR 10 POS 3.81mm Solder ST T HEADER, VERTICAL, 3.81MM, 10WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;10Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 3.81mm节距 10路 (1排) 直 印刷电路板接线端子块, 焊接端接, 8A , 通孔
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Headers商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量100
工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant标准CSACertified,cULListed,ULListed
海关税号85369010认证机构UL,CUL,CSA
材料阻燃等级UL 94 V-0

电气参数

电流8A电压300V
量程（°/s）:PHOENIX - MCV Series额定电压160 V
极数10Poles输出电流8A
标称电压160V最大额定电流8A
最小输入电压160V最小供电电压160V
保护电压（VP）（2416）2.5kV

机械参数

颜色Green深度7.25 mm
间距0.150" (3.81mm)高度9.2 mm
长度7 mm重量4 oz
包装方式Bulk端接方式Solder
孔径1.2mm外壳颜色Green
安装类型Straight接触镀层Tin
安装样式Through Hole排数1
材料表面处理:-触头材料:-
壳体材料Polybutylene Terephthalate总长度39.49 mm
主要材料PCB尺寸/外形39.49mmLx18.7mmWx11.1mmH
插针孔直径3.81mm端接样式Through Hole
排针方向Vertical触点数10
接触件端接:Through Hole Vertical位数10
接线端子类型Header, Male Pins, Shrouded (4 Side)绝缘材料 - 材质PBT
法兰下方引脚尺寸0.8x0.8mm

产品信息

类型Shrouded Header级别SingleLevel
连接器性别HDR系列MCV
CAD图纸3D CAD Model制造商全称COMBICON
层数1基础产品编号MCV1,5/10-G-3,81
每层位数10
