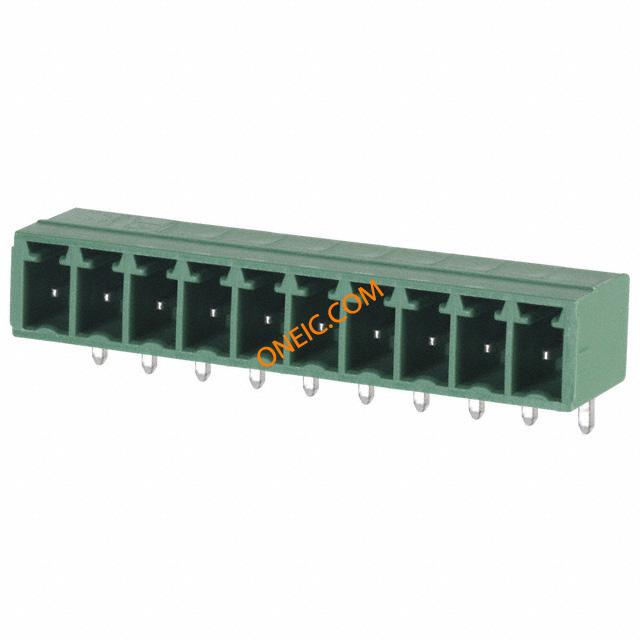

1803358

点击放大查看

1803358

制造商
Phoenix Contact GmbH & Co. KG
描述プラグ着脱可能ターミナルブロック 3.81 10P HEADER 90DE Conn Shrouded Header HDR 10 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 3.81MM Phoenix Contact MC Series 3.81mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 8A Pluggable Terminal Blocks 3.81 10P HEADER 90DE Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;10Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MC 系列 3.81mm节距 10路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A , 通孔
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers商标名COMBICON Control
零件号别名1,5/10-G-3,81 MC产品类别Pluggable Terminal Blocks
标准包装数量100工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准CSACertified,cULListed,ULListed认证机构UL,CUL,CSA
材料阻燃等级UL 94 V-0

电气参数

电流8A电压300V
额定电压160 V极数10Poles
输出电流8A标称电压160V
最大额定电流8A最小输入电压160V
保护电压（VP）（2416）2.5kV

机械参数

颜色Green深度9.2
间距0.150" (3.81mm)高度7.25
长度7 mm重量4 oz
包装方式Bulk方向直角
端接方式Solder孔径1.2mm
外壳颜色Green安装类型Right Angle
接触镀层Tin安装样式Soldering
排数1壳体材料Polybutylene Terephthalate
总长度39.49主要材料PCB
尺寸/外形39.49mmLx18.7mmWx11.1mmH端接排数焊接
插针孔直径3.81mm端接样式Through Hole
排针方向90°, Right Angle触点数10
位数10接线端子类型Header, Male Pins, Shrouded (4 Side)
绝缘材料 - 材质PBT法兰下方引脚尺寸0.8x0.8mm

产品信息

类型Shrouded Header级别SingleLevel
连接器性别HDR系列MC
产品特性90DegCAD图纸3D CAD Model
制造商全称COMBICON层数1
基础产品编号MC1,5/10-G-3,81每层位数10
