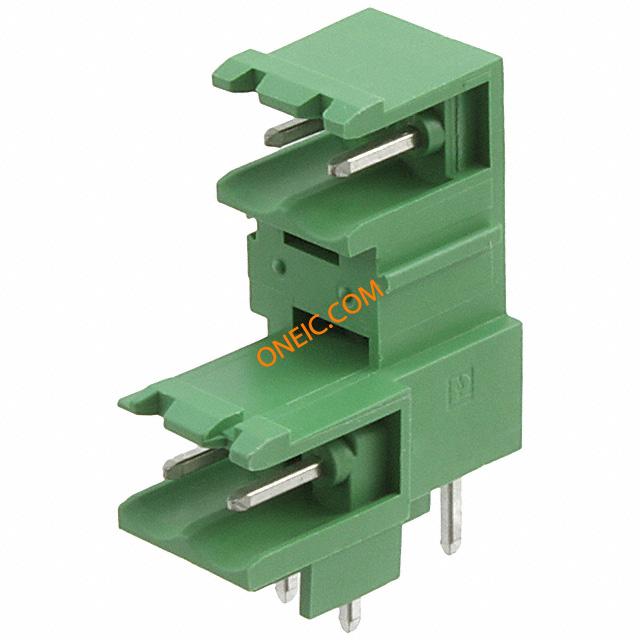

1802430

点击放大查看

1802430

制造商
Phoenix Contact GmbH & Co. KG
描述プラグ着脱可能ターミナルブロック MDSTBW 2.5/ 2-G-5.08 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 2-G-5,08 Pluggable Terminal Blocks MDSTBW 2.5/ 2-G-5.08 MDSTBW25/2-G-508
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量1
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V最大额定电流10 A
最小输入电压320V

机械参数

颜色Green深度22.1
间距0.200" (5.08mm)高度10.16
重量5.643834 oz包装方式Bulk
端接方式Solder外壳颜色Green
安装类型Right Angle接触镀层Tin
排数2壳体材料Polybutylene Terephthalate
总长度12.7排针方向90°, Right Angle
触点数4位数4
接线端子类型Header, Male Pins, Shrouded (2 Side)

产品信息

类型Shrouded Header连接器性别HDR
系列MDSTBW产品特性Side Stacking (Interlocking)
层数2每层位数2
