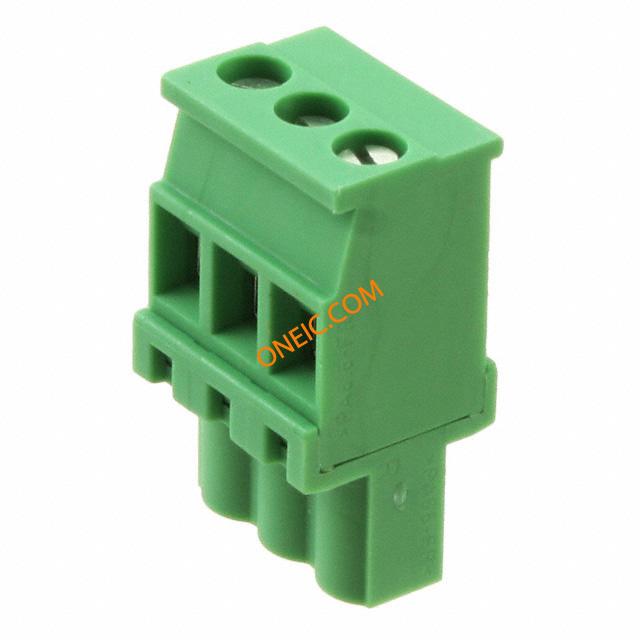

1792760

点击放大查看

1792760

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 5.08 3P PLUG 270DEG Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS 5.08MM Non-Fused Terminal Block Cable Mount 3 Way, Screw Down, 250V Conn Terminal Blocks F 3 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 3WAY Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Pluggable Terminal Blocks交货时间20 Days
商标名COMBICON Control子类别Connector Terminal Blocks
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010
抗辐射加固No材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V最大额定电流12A
最小输入电压320V最小供电电压250V

机械参数

颜色Green深度12.6 mm
间距0.200" (5.08mm)高度26 mm
长度7 mm重量4.691437 oz
材料（通用）Nylon包装方式Bulk
导线线规12-30 AWG端接方式Screw
安装类型Cable Mount连接器类型:Terminal Block, Pluggable
接触镀层Tin安装样式Cable
排数1插头进线方向270°
触头材料:-壳体材料Polyamide
总长度15.24 mm端接样式Through Hole
触点数3位数3
接线端子类型Plug, Female Sockets线规或范围 - AWG24-12
线规或范围 - mm²12第一连接器安装类型:Cable
每排/每行位置数3

产品信息

类型Terminal Block连接器性别F
系列:MVSTBW产品特性Retention Latches (Non-Wire Side)
CAD图纸3D CAD Model行业别名MVSTBW 2, 5/ 3-ST-5, 08
层数1每层位数3
