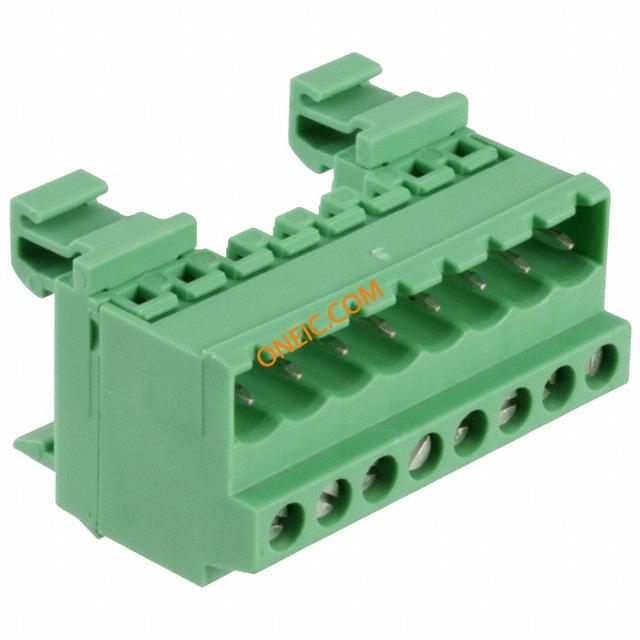

点击放大查看
1788787
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MSTBVK 2 5/ 8-G-5 08 Conn Terminal Block HDR 8 POS 5.08mm Screw Cable Mount 12A CONN DIN RAIL 8POS 5.08MM Header for PCB plug connector MSTBVK 2,5/ 8-G-5,08 MSTBVK25/8-G-508 Phoenix Contact MSTBVK 系列 绿色 印刷电路板管座 , 12A, 630 V |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 12A | UL电压 | 300V |
| 电流 - IEC | 12A | IEC电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 30 |
| 间距 | 5.08mm | 高度 | 27.2 |
| 长度 | 1.660" (42.16mm) | 重量 | 7.407532 oz |
| 导线线规 | 30 | 端接方式 | Screw |
| 高度（最大） | 1.181" (30.00mm) | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 安装样式 | DIN Rail | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 42.16 |
| 剥线长度（范围） | 7mm | 端子宽度 | 27.2mm |
| 端接排数 | 螺钉 | 端接样式 | Plug Receptacles, Screw |
| 触点数 | 8 | 位数 | 8 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.2-2.5mm² | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | HDR |
| 系列 | MSTBVK | 层数 | 1 |
