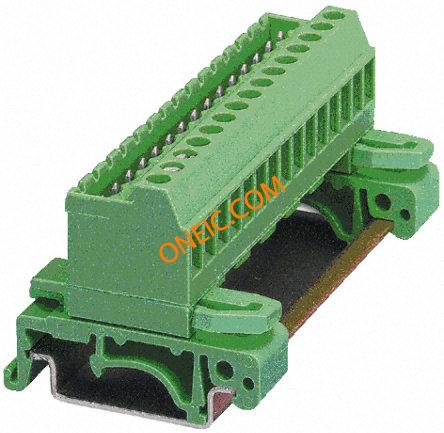

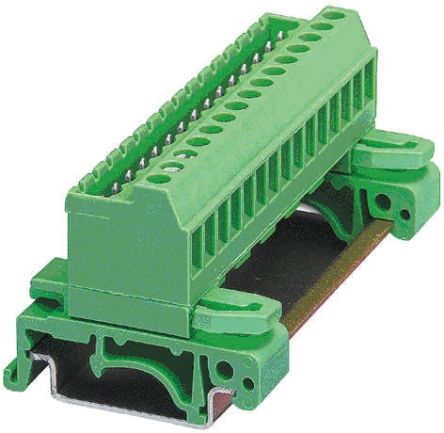

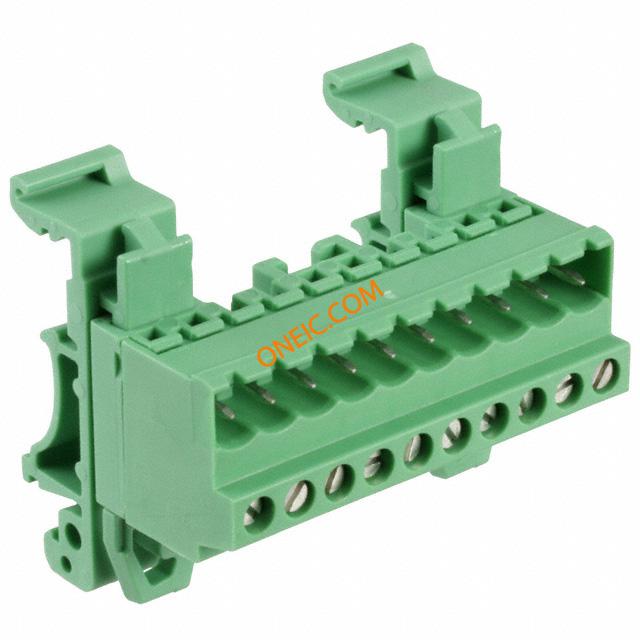

1788198
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks UMSTBVK 2 5/10-G-5 0 Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 12A PLUG TERM BLOCK 10POS 5.08MM Non-Fused Terminal Block Cable Mount 10 Way, Screw Down, 320V UMSTBVK25/10-G-508 Phoenix Contact 10 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-2 | ||
电气参数
| 电流 - UL | 12A | UL电压 | 300V |
| 电流 - IEC | 12A | IEC电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 43.5 |
| 间距 | 5.08mm | 高度 | 42.5 |
| 长度 | 2.060" (52.32mm) | 重量 | 7.442806 oz |
| 材料（通用） | Nylon | 导线线规 | 24 → 12 AWG |
| 端接方式 | Screw | 高度（最大） | 1.984" (50.40mm) |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 安装样式 | DIN Rail | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 52.32 |
| 剥线长度（范围） | 7mm | 端子宽度 | 42.5mm |
| 端接排数 | 螺钉拧紧 | 端接样式 | Plug Receptacles, Screw |
| 触点数 | 10 | 位数 | 10 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.2-2.5mm² | 每排/每行位置数 | 10 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 线路数量 | 10 | 行业别名 | UMSTBVK 2, 5/10-G-5, 08 |
| 层数 | 1 | ||
