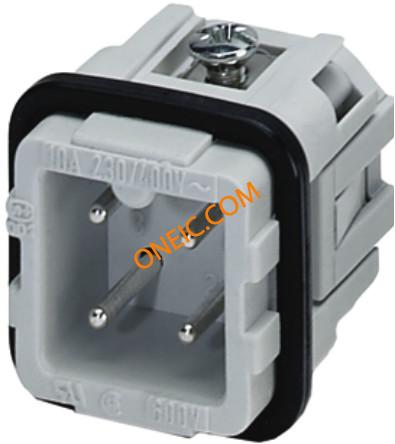

点击放大查看

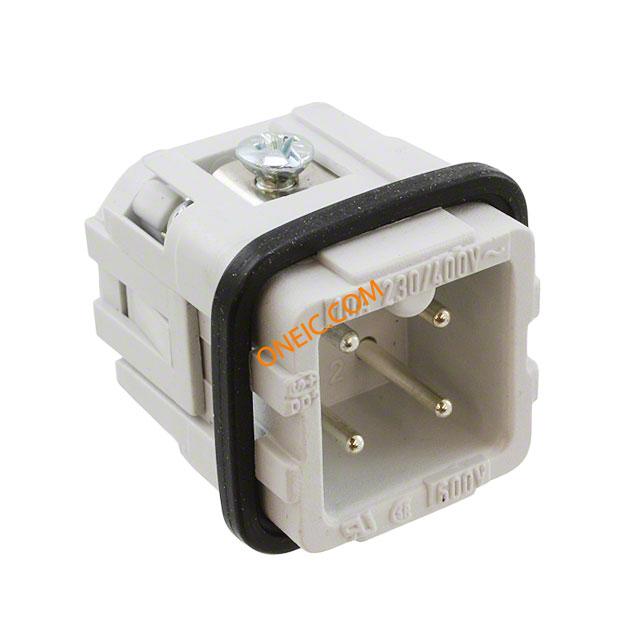

1773080
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-A 3-ESTS Conn Terminal Block M 3 POS Screw ST Panel Mount 10A HEAVYCON MALE INSERT 3POS Connector Male Insert A3 3P Screw Contact insert HC-A 3-ESTS Heavy Duty Power Connectors HC-A 3-ESTS maleinsert,A3series,3-pos.,screwconnectionwithoutwireprotection Phoenix Contact A3 系列 3针 插头 电源连接器外壳 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 10A |
| 最小输入电压 | 400V | ||
机械参数
| 尺寸 | D7 | 深度 | 25 |
| 重量 | 0.614825 oz | 包装方式 | Bulk |
| 导线线规 | 16-20 | 端接方式 | Screw |
| 安装类型 | Panel Mount | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2 |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 21 |
| 端接样式 | Screw | 触点数 | 3 |
| 位数 | 3 | 线规或范围 - AWG | 20-16 |
产品信息
| 类型 | Terminal Block | 连接器性别 | M |
| 系列 | A3 | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | Insert |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
