1772476
| 制造商 | Phoenix Contact GmbH & Co. KG |

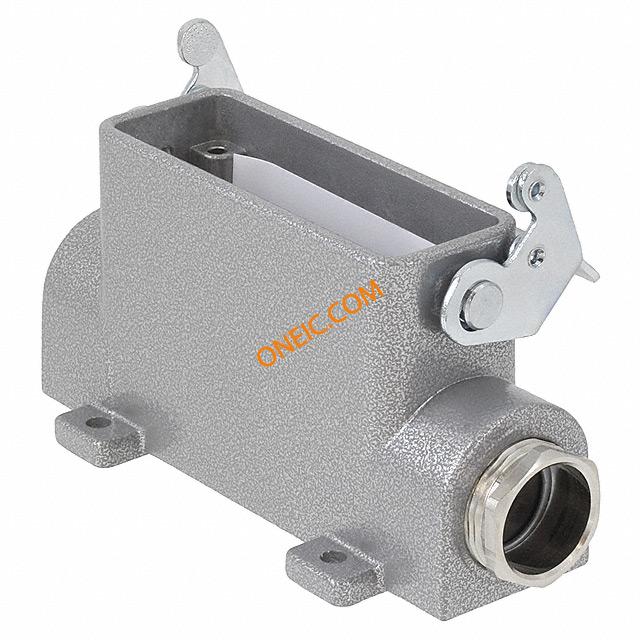

| 描述 | Heavy Duty Power Connectors HC-D 25-SML-57/ M1PG16 Box Mounting Base, With Single Locking Latch, Height 57mm, With Screw Connection, 1X PG16 HEAVYCON BOX MOUNTING BASE Housing for heavy-duty plug connectors HC-D 25-SML-57/M1PG16 BOXMOUNTINGBASE,57MM,1XPG16 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | HEAVYCON |
| 子类别 | Misc Products | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | D25 | 重量 | 9.552189 oz |
| 包装方式 | Bulk | 螺纹尺寸 | PG16 |
| 外壳颜色 | Gray | 连接器类型 | Base - Box Mount |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 4.311" L x 1.969" W x 2.244" H (109.50mm x 50.00mm x 57.00mm) | 端接样式 | Screw |
产品信息
| 样式 | Side Entry | 系列 | HC-SML |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Base Bottom |
| 行业别名 | HC-D 25-SML-57/M1PG16 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
