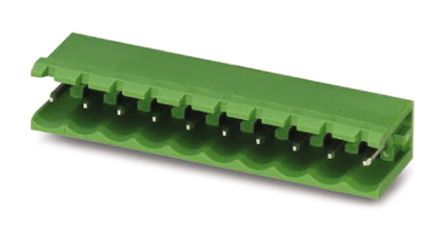

1736030
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MSTBW 2.5/10-G Conn Shrouded Header HDR 10 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5MM Header, nominal current: 12 A, rated voltage: 250 V, pitch: 5.0 mm, no. of positions: 10, mounting: Soldering Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 10, Color: green, Assembly: Soldering MSTBW25/10-G Phoenix Contact COMBICON MSTBW 系列 10路 5mm节距 PCB 接线端子块 , 焊接端接, 12A |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 供电电压 | 300V |
| 最大额定电流 | 12 A | 最小输入电压 | 320V |
机械参数
| 颜色 | Green | 深度 | 12 |
| 间距 | 0.197" (5.00mm) | 高度 | 12.4 |
| 重量 | 3.307 lbs | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | 锡 |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 50 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 10 |
| 位数 | 10 | 接线端子类型 | Header, Male Pins, Shrouded (2 Side) |
| 每层极数 | 10 | 第二连接器安装特性 | 90°, Right Angle |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MSTBW | 产品特性 | Standoffs |
| 主要用途 | Standoffs | 层数 | 1 |
| 每层位数 | 10 | 输出配置 | Through Hole |
