1687817
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B 5-ESTC HEAVYCON ML INSERT 5POS Contact insert HC-B 5-ESTC HEAVYCON male insert, B5 series, 5-pos., crimp connection MALEINSERT,5-POS.,CRIMPCONNECTION |
| 分类 |
商业参数
| 交货时间 | 20 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 230 V | 最大额定电流 | 16A |
机械参数
| 尺寸 | D7 | 重量 | 0.463500 oz |
| 包装方式 | Bulk | 触头类型 | CK 2.5-ED |
| 连接器类型 | Insert without Contacts | 接触镀层 | Silver |
| 插入力 | Male | 壳体材料 | Polyamide (PA), Nylon |
| 端接样式 | Crimp | 触点数 | 5 |
| 位数 | 5 | 线规或范围 - AWG | 20-14 |
产品信息
| 连接器性别 | Male | 产品子类型 | Inserts |
| 行业别名 | HC-B 5-ESTC | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1773022
Phoenix Contact
Heavy Duty Power Connectors HC-D 7-AML-26/ GW ALU Heavycon Panel Mounting Base D7, With Single Locking Latch, Height 26 Mm, Angled, Aluminum PANEL MOUNTING BASE 26 MM HC-D7-AML-26/GW
1604884
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D 7-KML-KML-51/ 01M20/PA HEAVYCON Coupling Housing D7, With Single Locking Latch, Height 51mm, With Support 1XM20, PA HEAVYCON COUPLING HOUSING Housing for heavy-duty plug connectors HC-D7-KML-61/O1M20/PA Heavy Duty Power Connectors HC-D 7-KML-KML-51/ 01M20/PA HEAVYCON coupling housing D7, with single locking latch, height 51 mm, with support 1xM20, PA HC-D7-KML-61/O1M20/PA
1773048
Phoenix Contact
ヘビーデューティパワーコネクタ HC-D7-TFL-48/M1PG11G ALUMINUM Connector Accessories Sleeve Housing Zinc Gray SLEEVE HOUSING SINGLE LOCK 57 MM Connector Sleave Housing 1XPG11Entry Housing for heavy-duty plug connectors HC-D 7-TFL-57/M1PG11G Heavy Duty Power Connectors HC-D7-TFL-48/M1PG11G ALUMINUM HC-D7-TFL-57/M1PG11G Phoenix Contact 电源连接器
1663860
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 2.5 Male Switch 2mm Diam. 1.00mm, Ag Turned 2.5 Crimp Contact, Individual Male Contact, Switching Contact CONN CRIMP CONTACT PIN 16 AWG Heavy Duty Power Connectors Turn 2.5 Male Switch 2mm Diam. 1.00mm, Ag CK25-ED-150ST-SAG
1585760
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 2.5 Crimp for 2 Cable Male 0.5mm,Au TURNED 2.5 CRIMP CONTACT INDIVIDUAL FE MALE CONTACT CORE CROSSSECTION 0.5 MM AU SURFACE CRIMP CONTACT PIN 20AWG Heavy Duty Power Connectors Turn 2.5 Crimp for 2 Cable Male 0.5mm,Au CK25-ED-05STFE Phoenix Contact 公插 压接触点
1604889
Phoenix Contact
Heavy Duty Power Connectors HC-D 7-TFL-57/ 01M20G/PA HEAVYCON Sleeve Housing D7, For Single Locking Latch, Height 48mm, With Support, Straight Conductor Exit, PA HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-D7-TFL-57/O1M20G/PA HC-D7-TFL-57/O1M20G/PA
1663608
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 2.5 Crimp Male Diam. 1.5mm, Ag Turned 2.5 Crimp Contact, Individual Male Contact, Core Diameter 1.5mm Square, Silver-Plated CRIMP CONTACT PIN 16AWG Crimp contact CK2,5-ED-1,50ST AG Heavy Duty Power Connectors Turn 2.5 Crimp Male Diam. 1.5mm, Ag Contact M Crimp ST Cable Mount Individual TURNED2.5CRIMPCONTACT,MALECONTACT

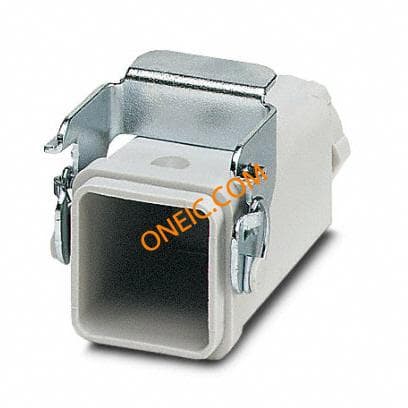

1772308
Phoenix Contact
Heavy Duty Power Connectors HC-D7-KML51/M1PG11PA Coupling Housing, With Single Locking Latch, Height 61mm, With Screw Connection, 1X PG11, Material PA COUPLING HOUSING LOCKING LATCH Housing for heavy-duty plug connectors HC-D 7-KML-61/M1PG11/PA HC-D7-KML-61/M1PG11/PA
1687820
Phoenix Contact
Heavy Duty Power Connectors HC-B 5-EBUC Conn HEAVYCON Insert F 5 POS Crimp ST Cable Mount HEAVYCON FML INSERT 5POS Contact insert HC-B 5-EBUC HEAVYCON female insert, B5 series, 5-pos., crimp connection HC-B5-EBUC
1772256
Phoenix Contact
ヘビーデューティパワーコネクタ HCD 7-TFL-49/M1PG11S PG11 SLEEVE HOUSING Sleeve Housing, For Single Locking Latch, Height H 49mm, With Screw Connection, 1X Pg11, Lateral Cable Entry, Material Pa SLEEVE HOUSING LOCKING LATCH R/A Housing for heavy-duty plug connectors HC-D 7-TFL-49/M1PG11S/PA Heavy Duty Power Connectors HCD 7-TFL-49/M1PG11S PG11 SLEEVE HOUSING HC-D7-TFL-49/M1PG11S/PA

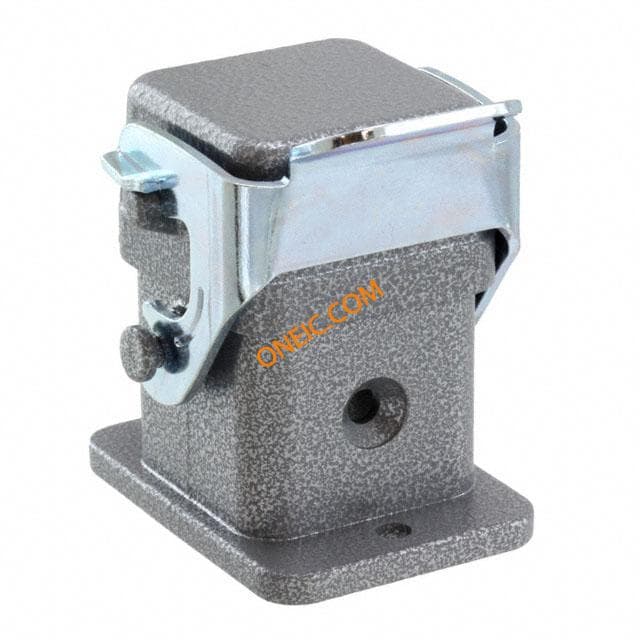

1684994
