点击放大查看
1679333
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Male K4/8 4 Power, 8 Control, Screw Conn HEAVYCON Insert M 4Power/8Signal POS Screw ST Panel Mount CONN MALE INSERT 4+8POS HEAVYCON Contact insert HC-K 4/8-ESTS HEAVYCONMALEINSERT4POWER8CONTROL |
| 分类 |
商业参数
| 交货时间 | 12 Days | 商标名 | HEAVYCON |
| 子类别 | Connector Rectangular | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 HB | ||
电气参数
| 额定电压 | 400V | 最大额定电流 | 80/16 |
| 最小输入电压 | 400V/400V | ||
机械参数
| 尺寸 | B24 | 深度 | 42 |
| 高度 | 34 | 重量 | 5.195855 oz |
| 包装方式 | Bulk | 端接方式 | Screw |
| 安装类型 | Straight | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | 2/2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide/Polycarbonate |
| 总长度 | 111 | 端接样式 | Screw |
| 第一触头极性 | M | 触点数 | 4Power/8Signal |
| 位数 | 4+8+Ground | ||
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 行业别名 | HC-K 4/8-ESTS | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号

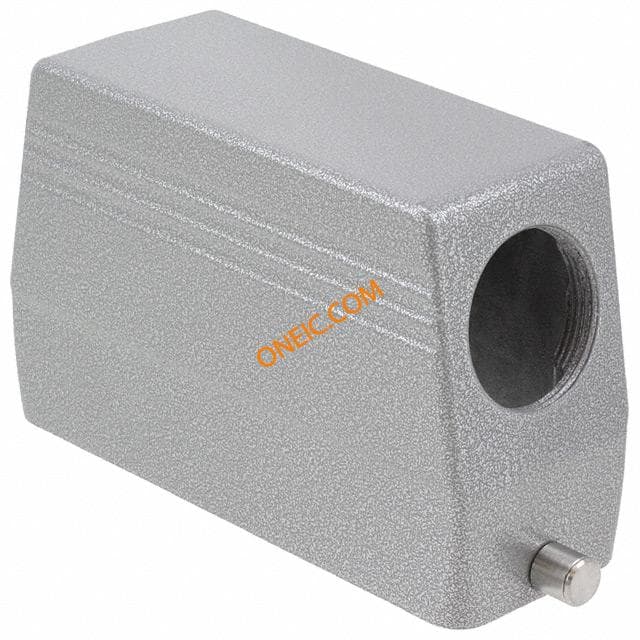

1645370
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1STM32S HEAVYCON Sleeve Housing B24, For Single Locking Latch HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1STM32S Heavy Duty Power Connectors HC-B 24-TFL-76/ O1STM32S HC-B24-TFL-76/O1STM32S
1771778
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFQ-76/M1P Connector Accessories Sleeve Housing SLEEVE HOUSING DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-TFQ-76/M1PG29S Heavy Duty Power Connectors HC-B 24-TFQ-76/M1P Housing;DoubleLockingLatch;76mm(H);Lat.CableOut.;HC-B24-TFQ-76/M1PG29S
1771930
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AML Panel Mounting Base, With Single Locking Latch, Height 27mm PNL MNT BASE B24 LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-AML Heavy Duty Power Connectors HC-B 24-AML HEAVYCONpanelmountingbaseB24

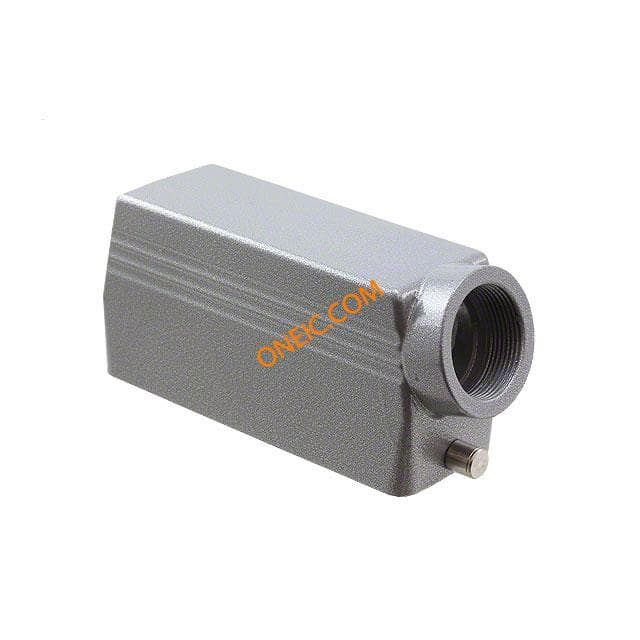

1604841
