1674671
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-DD 42-EBUC Conn Rectangular PIN 42 POS Crimp ST Panel Mount CONN FMALE INSERT 42POS HEAVYCON Contact insert HC-DD 42-EBUC INSERT FEMALE 42POS CRIMP HC-DD42-EBUC |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Connector Rectangular |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | B10 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver|Gold | 排数 | 6 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 端接样式 | Crimp | 第一触头极性 | PIN |
| 触点数 | 42 | 位数 | 42 |
产品信息
| 类型 | Rectangular | 连接器性别 | Female |
| 行业别名 | HC-DD 42-EBUC | 适用产品/相关产品 | 1584062 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1674684
Phoenix Contact
Heavy Duty Power Connectors HC-DD 42-ESTC CONN MALE INSERT 42POS HEAVYCON Contact insert HC-DD 42-ESTC INSERT MALE 42POS CRIMP
1690118
Phoenix Contact
Heavy Duty Power Connectors HC-B10-TMS-100/ 01STM32G-EUA HEAVYCON Advance For Increased Environmental Requirements, Sleeve Housing B10, With Screw Locking SLEEVE HOUSING B10 100 MM HC-B10-TMS-100/O1STM32G-EUA Phoenix Contact 连接器外壳
1663446
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE
1884115
Phoenix Contact
ヘビーデューティパワーコネクタ Rolled Fem Cont. Ag, 0.5mm-1.5mm Contact SKT Crimp ST Cable Mount CRIMP CONTACT SOCKET 20-16AWG Crimp contact, 1.6mm, female Crimp contact CK1,6-ER-1,50BU AG Heavy Duty Power Connectors Rolled Fem Cont. Ag, 0.5mm-1.5mm CK16-ER-150BUAG Phoenix Contact VC-D 系列 母座 滚压触点 , 适用于大负荷电源连接器
1604781
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B10-TMQ-52/01M25S HEAVYCON Sleeve Housing B10, With Double Locking Latch, Height 52 HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 10-TMQ-52/O1M25S Heavy Duty Power Connectors HC-B10-TMQ-52/01M25S HEAVYCONsleevehousingB10
1690121
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10TMS-100/ 01STM32G-STA HEAVYCON Advance Standard Powder-Coated Sleeve Housing B10 HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 10TMS-100/ 01STM32G-STA HC-B10TMS-100/01STM32G-STA
1644973
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10-TFL-72/ O1STM25S HEAVYCON Sleeve Housing B10, For Single Locking Latch, Height 72mm, Without Support 1X M25, Lateral Conductor Exit HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 10-TFL-72/O1STM25S Heavy Duty Power Connectors HC-B 10-TFL-72/ O1STM25S HC-B10-TFL-72/O1STM25S
1586811
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10-SMQ-52/ M1M20 HC-B 10-SMQ-52/M1M20 BOX MNT BASE W/DBL LOCKING LATCH Heavy Duty Power Connectors HC-B 10-SMQ-52/ M1M20 HC-B10-SMQ-52/M1M20
1690150
Phoenix Contact
Heavy Duty Power Connectors HC-B10-TMS-100/ 01STM32S-EUA HEAVYCON Advance For Increased Environmental Requirements, Sleeve Housing B10, With Screw Locking HEAVYCON SLEEVE HOUSING Housing HC-B 10-TMS-100/O1STM32S-EUA HEAVYCON ADVANCE for increased environmental requirements, sleeve housing B10, with screw locking, height 100 mm, with 1xM32 thread, lateral cable ... HEAVYCON ADVANCE for increased environmental requirements, sleeve housing B10, with screw locking, height 100 mm, with 1xM32 thread, lateral cable outlet POWDER-COATEDSLEEVEHOUSINGB11
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1604772
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B10-TFQ-52/01M25S Heavycon Sleeve Housing B10, For Double Locking Latch, Height 52 Mm, With Support 1X M25, Lateral Conductor Exit SLEEVE HSNG B10 FOR DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 10-TFQ-52/O1M25S Heavy Duty Power Connectors HC-B10-TFQ-52/01M25S HC-B10-TFQ-52/O1M25S

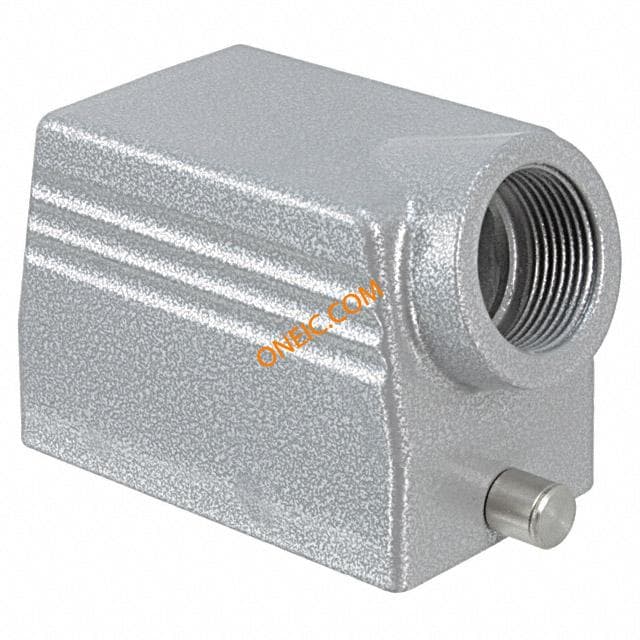

1604761
