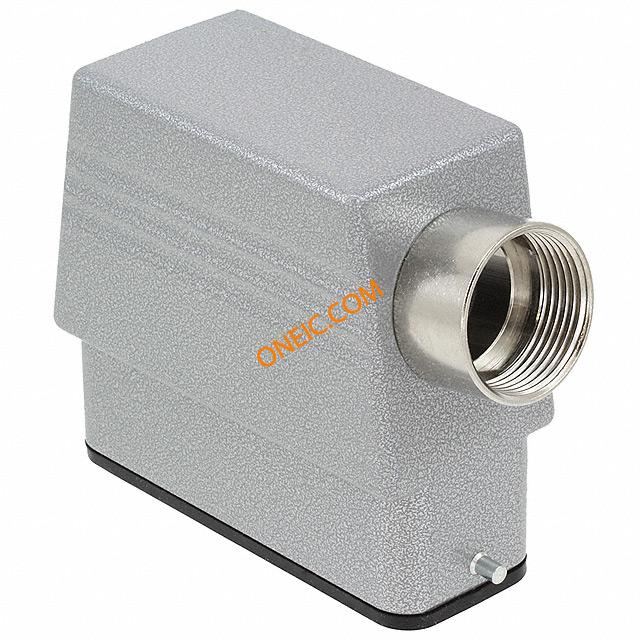

1604969
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-D25-TFL-72/01M25S HEAVYCON Sleeve Housing D25, For Single Locking Latch HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-D 25-TFL-72/O1M25S HEAVYCONsleevehousingD25 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | D25 | 重量 | 8 oz |
| 包装方式 | Bulk | 螺纹尺寸 | M25 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 3.130" L x 1.161" W x 2.834" H (79.50mm x 29.50mm x 72.00mm) | 端接样式 | Cable |
| 触点数 | 1 | ||
产品信息
| 样式 | Side Entry | 系列 | HC-TFL |
| 产品子类型 | Housings | 锁定位置 | Side Clip on Base Bottom |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
