点击放大查看

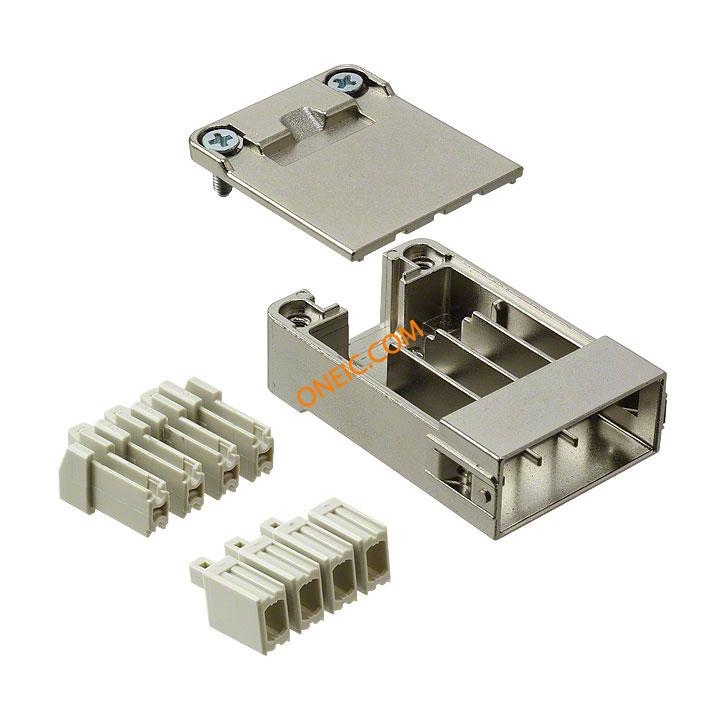

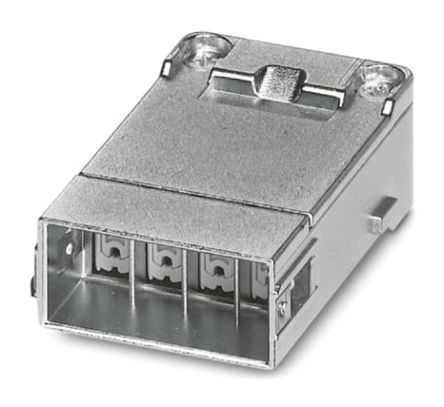

1587713
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Modular Connectors / Ethernet Connectors Gigabit Module CAT5 Male GIGABIT CONNECTOR 8-POS. MALE CONNECTOR WITHOUT CRIMP CONTACTS FOR CAT5 CONN ETHERNET MODULE CAT5 MALE HC-M-08-GBIT-STC Phoenix Contact 触点模块 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 标准包装规格 | 1 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 50V | 最大额定电流 | 5A |
机械参数
| 包装方式 | Bulk | 连接器类型 | Module without Contacts |
| 接触镀层 | Nickel | 安装样式 | Snap In |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate (PC) |
| 端接样式 | Crimp | 位数 | 8 |
产品信息
| 连接器性别 | Male | CAD图纸 | 3D CAD 模型 |
| 附件类型 | 触点插件 | 性能类别 | Cat 5 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
