1584415
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Conn Housing M 40 POS Crimp ST Panel Mount INSERT MALE 40POS+1GND CRIMP HC-D 40-I-CT-M HC-D40-I-CT-M |
| 分类 |
商业参数
| 其他名称 | HC-D 40-I-CT-M | 标准包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | B16 | 深度 | 32.8 |
| 高度 | 34 | 包装方式 | Bulk |
| 触头类型 | CK 1.6-ED | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 壳体材料 | Polyamide |
| 总长度 | 83.5 | 端接样式 | Crimp |
| 触点数 | 40 | 位数 | 40+Ground |
产品信息
| 类型 | Housing | 连接器性别 | M |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1646299
Phoenix Contact
Circular Metric Connectors HC-B 16-SML-84/ O1M32 Heavycon Box Mounting Base B16, With Single Locking Latch, Height84 Mm, With Support 1Xm32 HEAVYCON BOX MOUNTING BASE B16 Housing for heavy-duty plug connectors HC-B 16-SML-84/O1M32 HC-B16-SML-84/O1M32

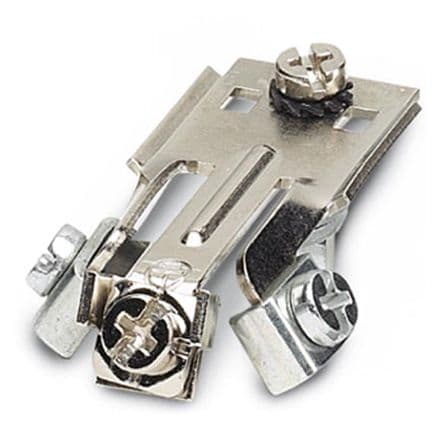

1644326
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B-3PE Misc Products HEAVYCON HOUSING/ACCESSORY Heavy Duty Power Connectors HC-B-3PE HC-B-3PE Phoenix Contact PE Multiplier
1663365
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 18AWG Phoenix Contact 1663365 Crimp Contact Terminal Block, Series: CK Crimp contact CK1,6-ED-1,00ST AG Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 0.75-1.00mm Ag TURNED1.6CRIMPCONTACTMALE Phoenix Contact CK 系列 压接触点
1678457
Phoenix Contact
Heavy Duty Power Connectors HC-B 16-SMQ-67/ O2PG29 Box Mounting Base, With Double Locking Latch, Height 67 Mm, Without Screw Connection, 2X Pg29 HEAVYCON HOUSING/ACCESSORY CONN BASE SIDE ENTRY SZB16 PG29 HC-B16-SMQ-67/O2PG29 Phoenix Contact HC-B 系列 连接器外壳
1645697
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 16-SMLD-84/ O1M40 Misc Products HEAVYCON HOUSING/ACCESSORY Housing for heavy-duty plug connectors HC-B 16-SMLD-84/O1M40 Heavy Duty Power Connectors HC-B 16-SMLD-84/ O1M40 CONN BASE SIDE ENTRY SZB16 M40 HC-B16-SMLD-84/O1M40

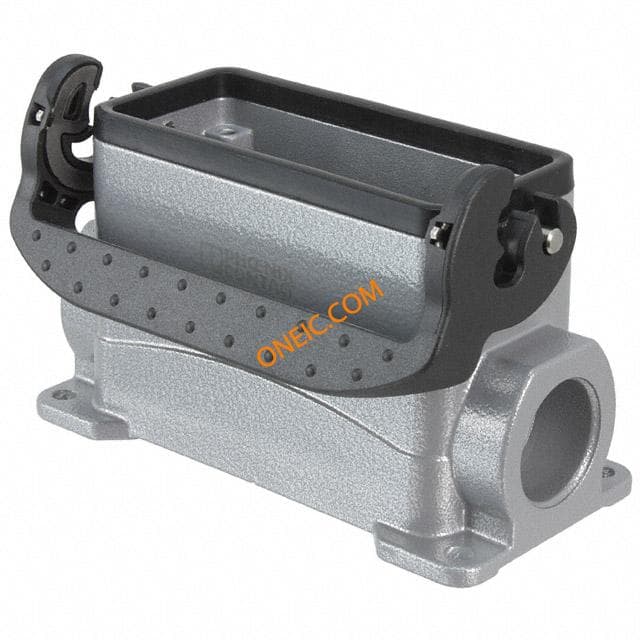

1604784
