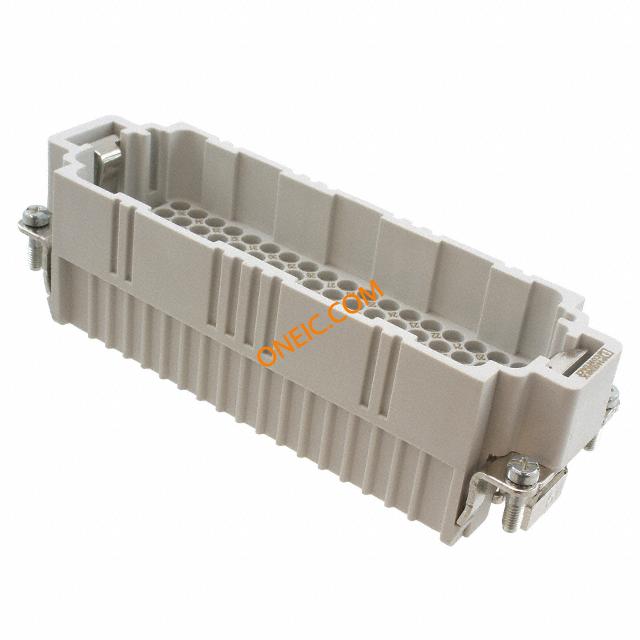

1584114
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Male DD108 108P Crimp Conn Rectangular M 108 POS Crimp ST Panel Mount HEAVYCON MALE INSERT 108POS HC-DD108-I-CT-M |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | B24 | 深度 | 32.5 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 插入力 | Male |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 111 | 端接样式 | Crimp |
| 第一触头极性 | M | 触点数 | 108 |
| 位数 | 108 | 线规或范围 - AWG | 26-14 |
产品信息
| 类型 | Rectangular | 连接器性别 | Male |
| 系列 | Heavycon | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1647323
Phoenix Contact
Heavy Duty Power Connectors HC-B 48-TFL-96/ O1STM40S HEAVYCON Sleeve Housing B48, For Single Locking Latch HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 48-TFL-96/O1STM40S HC-B48-TFL-96/O1STM40S Phoenix Contact HC-B 系列 外壳 , 适用于DD216，HC-B48
1674273
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1PG29S Sleeve Housing, For Single Locking Latch, Height 76mm, Without Screw Connection, 1X PG29, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1PG29S Heavy Duty Power Connectors HC-B 24-TFL-76/ O1PG29S Sleeve housing, for single locking latch, height 76 mm, without screw connection, 1x Pg29, lateral cable entry HC-B24-TFL-76/O1PG29S
1772078
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-KML-79/ M1PG21 Connector Accessories Coupling Housing Aluminum Gray HEAVYCON COUPLING HOUSING Housing for heavy-duty plug connectors HC-B 24-KML-79/M1PG21 Heavy Duty Power Connectors HC-B 24-KML-79/ M1PG21 HC-B24-KML-79/M1PG21
1645752
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-SML-84/ O1M32 HEAVYCON Box Mounting Base B24, With Single Locking Latch BOX MOUNT BASE B24 SNGL LATCH Housing for heavy-duty plug connectors HC-B 24-SML-84/O1M32 Heavy Duty Power Connectors HC-B 24-SML-84/ O1M32 HC-B24-SML-84/O1M32
1771969
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SMQ-67/M1PG21 Box Mounting Base, With Double Locking Latch, Height 67mm, With Screw Connection, 1X PG21 BOX MOUNT BASE DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-SMQ-67/M1PG21 Heavy Duty Power Connectors HC-B24-SMQ-67/M1PG21 Boxmountingbase,withdoublelockinglatch,height67mm
1604860
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-TMQ-76/O1M32G Misc Products SLEEVE HSNG B24 W/DOUBLE LOCK Heavy Duty Power Connectors HC-B24-TMQ-76/O1M32G HC-B24-TMQ-76/O1M32G
1674875
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 1.5mm Au Contact PIN Crimp ST Cable Mount CRIMP CONTACT PIN 16AWG Crimp contact CK1,6-ED-1,50ST AU Turned 1.6 crimp contact, individual male contact, core diameter 1.5 mm², gold-plated TURNED1.6CRIMPCONTACTMALE
1604835
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SMQ-67/01M25 Misc Products BOX MNT BASE B24 W/DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 24-SMQ-67/O1M25 Heavy Duty Power Connectors HC-B24-SMQ-67/01M25 HC-B24-SMQ-67/O1M25 Connector Housing
1645367
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1STM32G HEAVYCON Sleeve Housing B24, For Single Locking Latch, Height 76mm, Without Support 1X M32, Straight Conductor Exit HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1STM32G Heavy Duty Power Connectors HC-B 24-TFL-76/ O1STM32G HC-B24-TFL-76/O1STM32G
1674927
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Male Diam. 2.5mm Au Contact PIN Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT MALE Crimp contact CK1,6-ED-2,50ST AU CK16-ED-250STAU Phoenix Contact HC-M 系列 公插 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1642807
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFQ-76/O1 STM32G-EMV Heavycon Sleeve Housing B24, For Double Locking Latch, Height 76Mm, With Thread M32, Straight Cable Outlet, Emc Version SLEEVE HSNG B24 DBL LOCK LATCH EMC housing for heavy-duty plug connectors HC-B 24-TFQ-76/O1STM32G-EMV Heavy Duty Power Connectors HC-B 24-TFQ-76/O1 STM32G-EMV HC-B24-TFQ-76/O1STM32G-EMV
1604830
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SFQD-67/O1M25 Heavycon Box Mounting Base B24, For Double Locking Latch, Height BOX MNT BASE B24 FOR DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 24-SFQD-67/O1M25 Heavy Duty Power Connectors HC-B24-SFQD-67/O1M25 HEAVYCON box mounting base B24, for double locking latch, height 67 mm, with support 1xM25, with cover HC-B24-SFQD-67/O1M25 Connector Housing
1771930
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-AML Panel Mounting Base, With Single Locking Latch, Height 27mm PNL MNT BASE B24 LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-AML Heavy Duty Power Connectors HC-B 24-AML HEAVYCONpanelmountingbaseB24

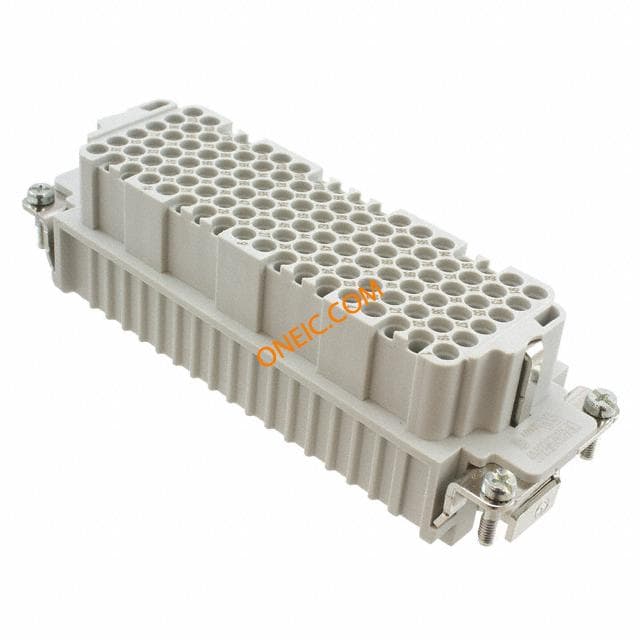

1584130
