点击放大查看

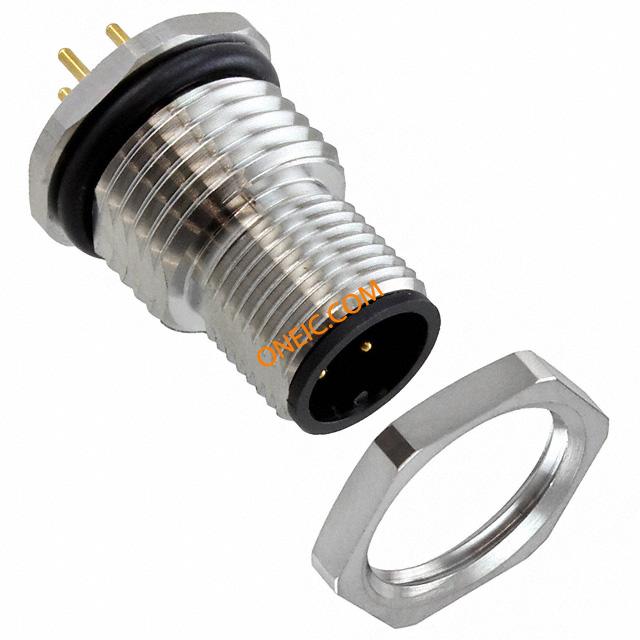

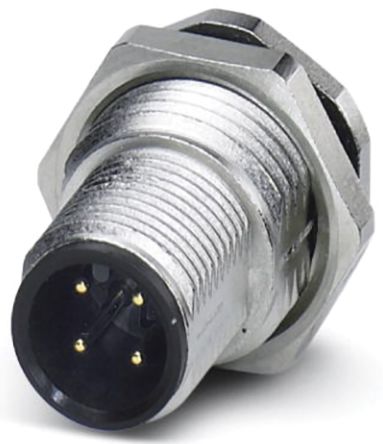

1404979
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | CONN PLUG 4POS PNL MNT THRU PIN Specialized Cables SACC-DSI-M12MS- 4CON-L180 VA SACC-DSI-M12MS-4CON-L180VA Phoenix Contact 连接器 |
| 分类 |
商业参数
| 商标名 | PLUSCON Circular | 标准包装数量 | 20 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 4A |
| 导体数量 | 4 | ||
机械参数
| 长度 | 0.5 m | 包装方式 | Bulk |
| 方向 | A | 端接方式 | Solder |
| 第一连接器 | Plug | 第二连接器 | Socket |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Push-Twist |
| 位数 | 4 | 外壳尺寸-插件 | M12-4 |
| 外壳材料及表面处理 | Steel | 护套（绝缘）材料 | Thermoplastic Elastomer (TPE) |
产品信息
| 连接器性别 | Male / Female | 功能 | Housing with dip solder contacts rear mounting |
| CAD图纸 | 3D CAD 模型 | ||
环境参数
| 防护等级 | IP67/69K - Dust Tight, Waterproof | 工作温度 | -25°C ~ 85°C |
文档与媒体
相关型号
1521601
Phoenix Contact
Circular Metric Connectors SPEEDCON-SACC-M12FS 4QO-0.75-M SCO Conn M12 Circular SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port CONN M12 4POS SOCKET Phoenix Contact M12 4-Pin Female Connector CONNECTOR CIRCULAR CONNECTOR,IDC,4POSITIONFEMALE,METALNUT,WIRERANGE:#22-18AWG

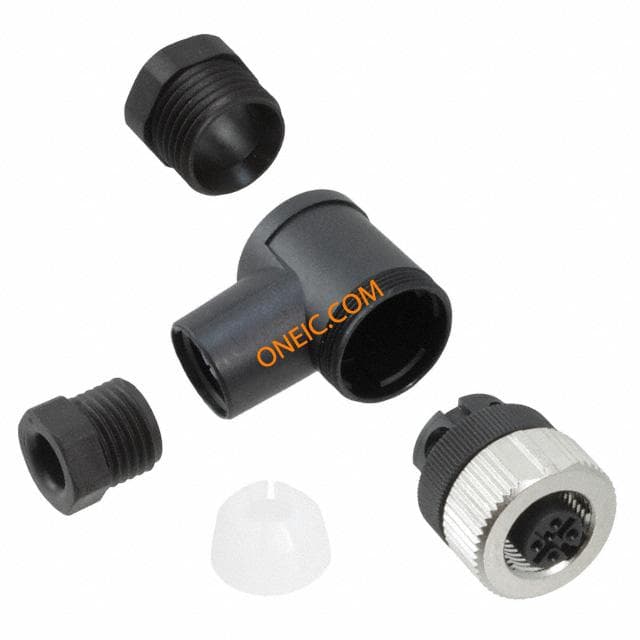

1543058
