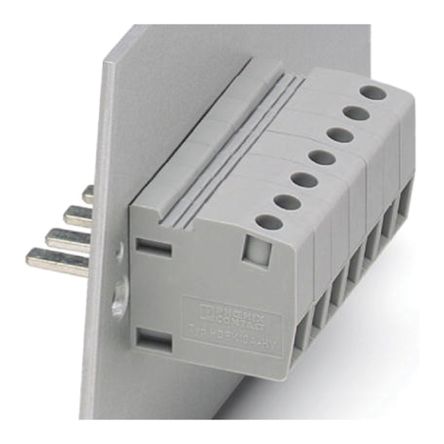

点击放大查看
0717393
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Fixed Terminal Blocks HDFK 10-VP-HV Conn Feed-Thru 2 POS Solder Panel Mount 63A FEED THROUGH TERM BLOCK 6-24AWG Feed-through terminal block, Type of connection: Screw connection, Load current : 63 A, Cross-section: 0.5 mm² - 16 mm², Connection direction conductor: 0 °, Width: 10.1 mm, ... Feed-through terminal block, Type of connection: Screw connection, Load current : 63 A, Cross-section: 0.5 mm² - 16 mm², Connection direction conductor: 0 °, Width: 10.1 mm, Color: gray Phoenix Contact 2 路 母 灰色, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Fixed Terminal Blocks | 商标名 | COMBICON Power |
| 产品类别 | Fixed Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 - UL | 65A | UL电压 | 600V |
| 额定电压 | 1 kV | 最大额定电流 | 63 A |
| 最小输入电压 | 1000V | ||
机械参数
| 颜色 | Gray | 深度 | 58.8 |
| 宽度 | 0.398" (10.10mm) | 高度 | 31.2 |
| 长度 | 58.8 mm | 材料（通用） | 聚酰胺 |
| 导线线规 | 6-24 AWG | 端接方式 | Solder |
| 安装类型 | Panel Mount | 连接器类型 | 母座 |
| 排数 | 1 | 面板厚度 | 0.039 ~ 0.158" (1.0 ~ 4.0mm) |
| 壳体材料 | Polyamide | 面板安装类型 | 2 Piece |
| 端接排数 | 螺钉 | 触点数 | 2 |
| 线规或范围 - AWG | 20-6 | 线规或范围 - mm² | 6 |
| 后面板接线方式 | Solder Tabs | 前面板接线方式 | Bolt/Screw Clamp - Wire Entry 90° to Panel |
产品信息
| 类型 | Feed-Thru | 层数 | 1 |
| 每层位数 | 1 | ||
