0711344
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UK5 N BLACK Conn Universal Terminal Blocks F 2 POS Screw ST FEED THROUGH MOD TERM BLOCK Conn;TermBlk;FeedThru;ScrewClamp;2;0.2-6sq.mm;24-10AWG;6.2mmW;Black |
| 分类 |
商业参数
| 商标名 | CLIPLINE UK | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 32A | IEC电压 | 800V |
| 额定电压 | 800 V | 最大额定电流 | 32 A |
机械参数
| 颜色 | Black | 宽度 | 6.2 mm |
| 高度 | 47 mm, 52 mm, 54.5 mm | 长度 | 42.5 mm |
| 重量 | 0.322404 oz | 导线线规 | 24 |
| 端接方式 | Screw | 安装类型 | Straight |
| 安装样式 | DIN Rail | 排数 | 2 |
| 剥线长度（范围） | 8mm | 端子宽度 | 6.2mm |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 10-30 AWG | 线规或范围 - mm² | 0.2-6mm² |
产品信息
| 类型 | Universal Terminal Blocks | 连接器性别 | F |
| 系列 | UK | 层数 | 1 |
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1007222
Phoenix Contact
Terminal Block Tools & Accessories SBS 6:UNBEDRUCKT Connector Accessories Marker Cards for Modular Terminal Blocks Straight White MARKING CARD UNPRINTED SIMPLEX MARKERCARDSFORTERMINALBLOCKSWHITE White Marker Card
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0201524
Phoenix Contact
Terminal Block Tools & Accessories FB 100-6 JUMPER 100P ALUMINUM BRIDGE TERM BLOCK 100POS Fixed Bridge, 100-Pos
0824992
Phoenix Contact
Terminal Block Tools & Accessories ZB 6 CUS TERM BLOCK MARKING LABEL Terminal Block Tools & Accessories ZB 6 CUS 1 strip is 1 piece TERMINALBLOCKMARKING
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
3003020
Phoenix Contact
Terminal Block Tools & Accessories END COVER GRY Connector Accessories Cover Gray CONN TERM BLK END COVER Phoenix Contact 3003020 Cover Terminal Block, Series: D-UK END COVER, D-UK4/10 EndCover;Universal;TermBlk;Gray;42.5mmL;1.8mmW;35.9mmH End piece; Application: UK4,UK6; grey; polyamide Phoenix Contact D-UK 系列 端板
3001132
Phoenix Contact
Terminal Block Tools & Accessories PS-UK 2.5 B/E Individual Test Plug, 5mm Wide, 1Pos, Can Be Aligned As Desired TEST PLUGS COLOR: RED Test plugs PS-UK2,5 B/E PS-UK25B/E
1024085
Phoenix Contact
Terminal Block Tools & Accessories EA 5-WS Single Covers, For Covering One Terminal Block YELLOW TERM BLOCK SINGLE COVER Cover EA5-WS EA5-WS
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug

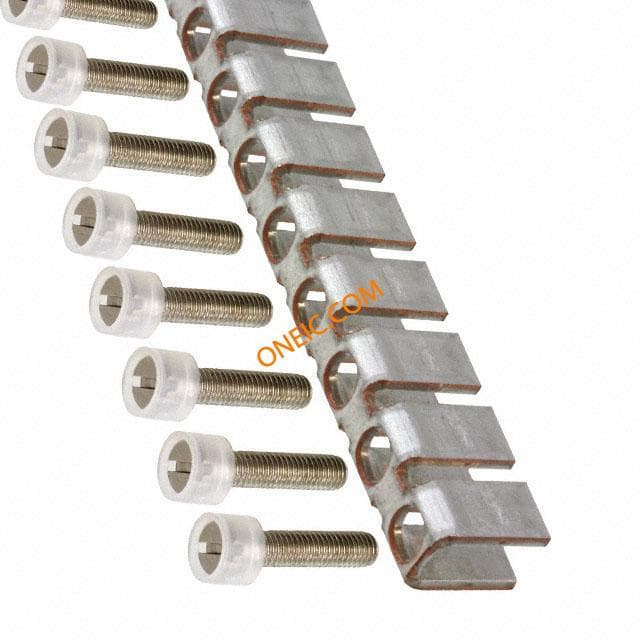

0201650
Phoenix Contact
Terminal Block Tools & Accessories FBI 100-6 BRIDGE TERM BLOCK 100POS Cross connector/jumper for modular terminal block FBI 100- 6 Conn Fixed Bridge 100 POS FixedBridgeBar;TermBlk;Universal;100;Silver
1024014
Phoenix Contact
Terminal Block Tools & Accessories EA 5 Cable Accessories Single Covers Acrylonitrile Butadiene Styrene Transparent TERM BLK COVER SINGLE SNAP FIT Cover EA5 EA5
0201184
Phoenix Contact
Terminal Block Tools & Accessories FB 10-6 Conn Fixed Bridge M 10 POS ST TERM BLOCK FIXED BRIDGE 10POS Phoenix Contact 0201184 Fixed Bridge Terminal Block, Series: FB FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FB 系列 固定桥接

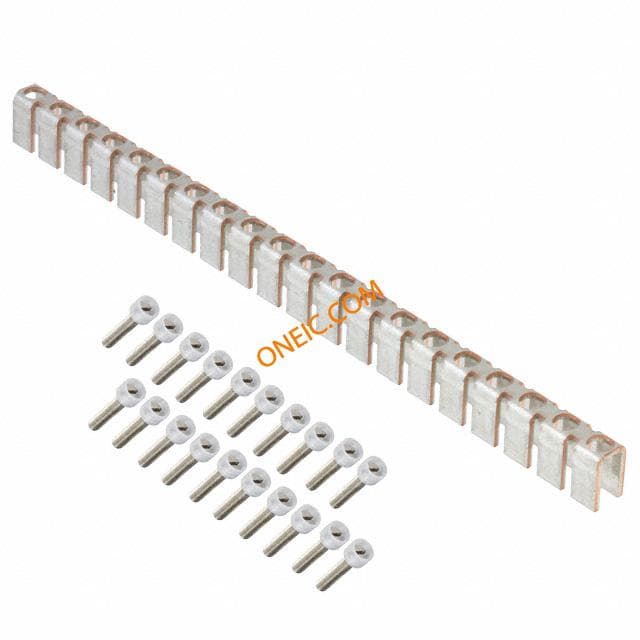

0201867
