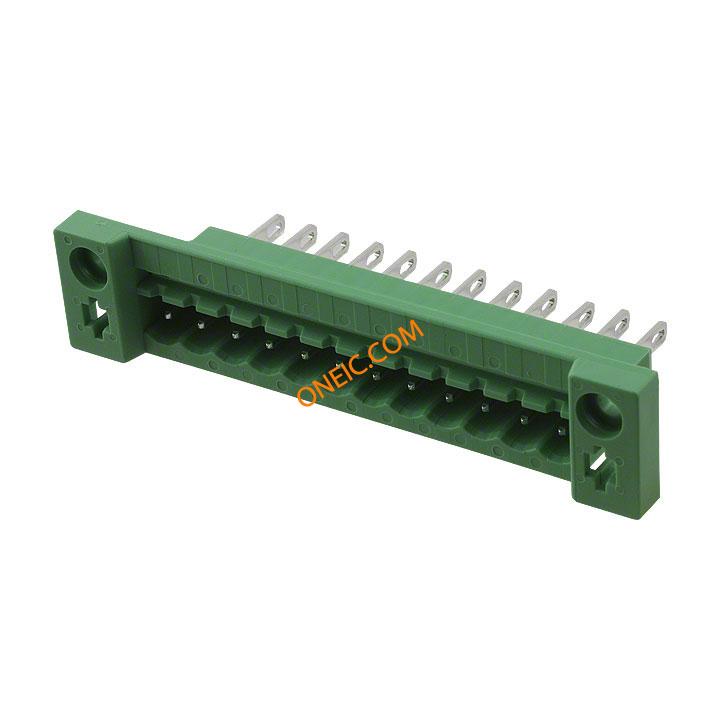

点击放大查看
0707332
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks DFK-MSTB 2.5/12-G-5.08 CONN HEADER 12POS 5.08MM PNL MNT Phoenix Contact DFK-MSTB Series 5.08mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 12 POS 5.08mm Solder Lug ST Wall Mount Phoenix Contact COMBICON DFK-MSTB 系列 5.08mm节距 12路 (1排) 直 印刷电路板接线端子块, 焊接端接 , 壁挂式 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 0.200" (5.08mm) |
| 宽度 | 3.200" (81.28mm) | 重量 | 0.425051 oz |
| 方向 | 直 | 端接方式 | Solder |
| 安装类型 | Straight | 接触镀层 | Tin |
| 安装样式 | Panel / Box - Feed Through | 排数 | 1 |
| 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) | 面板安装类型 | Screw Mount - Front Flange |
| 端接排数 | 焊接 | 触点数 | 12 |
| 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet | 前面板接线方式 | Header, Male Pins |
产品信息
| 类型 | Shrouded Header | 系列 | DFK-MSTB |
| 产品特性 | Lock Opening | CAD图纸 | 3D CAD Model |
| 行业别名 | DFK-MSTB 2, 5/12-G-5, 08 | 层数 | 1 |
| 每层位数 | 12 | ||
