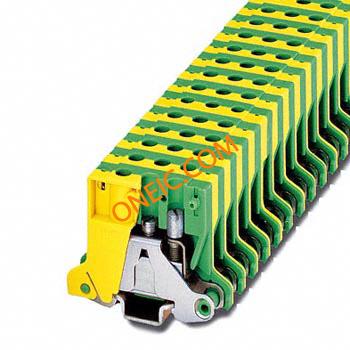

点击放大查看
0452014
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks 1P 7.5mm MSLKG5 Conn Terminal Block F 2 POS Screw ST TERM BLK GROUNDING(NS15)GRN/YEL |
| 分类 |
商业参数
| 产品 | DIN Rail Terminal Blocks | 交货时间 | 20 Days |
| 子类别 | Connector Terminal Blocks | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-2 | ||
机械参数
| 颜色 | Green / Yellow | 深度 | 8.2 |
| 宽度 | 8.2 mm | 长度 | 38 mm |
| 重量 | 0.438984 oz | 导线线规 | 24 |
| 端接方式 | Screw | 安装类型 | NS 15 |
| 安装样式 | DIN Rail | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 38 |
| 剥线长度（范围） | 8mm | 端子宽度 | 8.2mm |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 24-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | MSLKG | 行业别名 | MSLKG 5 |
| 层数 | 1 | ||
