0444019
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks USLKG35 15.2mm FEEDTHRU GRND Conn Modular Terminal Blocks F 2 POS Screw Cable Mount 150A TERM BLOCK GROUNDING GRN/YEL Green/yellow earth terminal conn,35sq.mm Conn;TermBlk;DINRail;Grd;Screw;.75-50sq.mm;18-1/0AWG;15.2mmW;Green-YL Phoenix Contact 绿色/黄色 2 路 接地端子块 USLKG 35, 螺钉拧紧端接 18 → 0 AWG, 长 50mm |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Terminal Blocks |
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 安全类别 | ATEX | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - IEC | 150A | 额定电压 | 750 V |
| 最大额定电流 | 150A | ||
机械参数
| 颜色 | Green, Yellow | 深度 | 15.2 |
| 宽度 | 15.2mm | 高度 | 62mm |
| 长度 | 50mm | 重量 | 3.155256 oz |
| 导线线规 | 18 → 0 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 安装样式 | DIN Rail |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 50 | 剥线长度（范围） | 15mm |
| 端子宽度 | 15.2mm | 端接排数 | 螺钉拧紧 |
| 端接样式 | Screw | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 1/0-18 AWG | 线规或范围 - mm² | 0.75-50mm² |
| 每排/每行位置数 | 2 | 触点镀层厚度 - 柱 | 15.2mm |
产品信息
| 制造商 | 0.75-50mm² | 类型 | Modular Terminal Blocks |
| 连接器性别 | F | 系列 | USLKG |
| 线路数量 | 2 | 行业别名 | '0444019, 0444019, USLKG35 |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0824605
Phoenix Contact
Terminal Block Tools & Accessories UC-TM 10 CUS UNICARD SHEETS 1 ROLL=48 LABELS Terminal Block Tools & Accessories UC-TM 10 CUS 1 sheet is 1 piece UC-TM10CUS
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
0818069
Phoenix Contact
Unspecified Tools & Accessories UC-TM 10 UNICARD 48 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=48 LABELS Terminal Block Tools & Accessories UC-TM 10 UNICARD 48 SECTION MarkerCard;TermBlk;10.2mm;48labelspercard;white

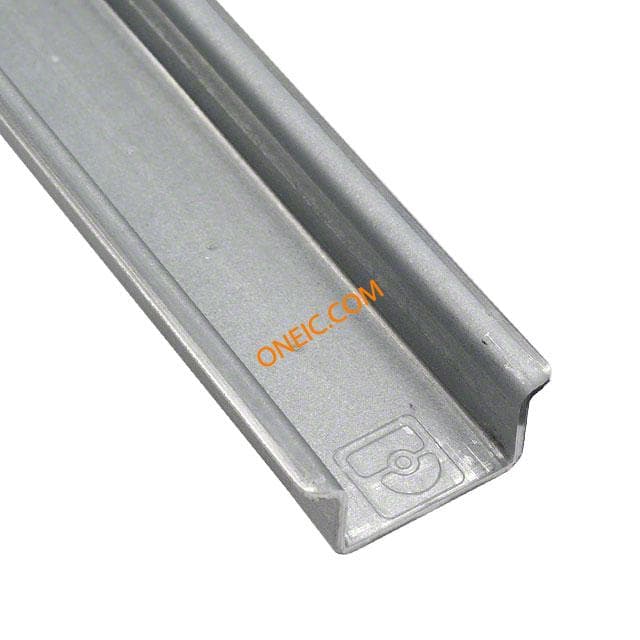

1206586
Phoenix Contact
取り付け用金具類 NS 35/15 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware NS 35/15 ZN UNPERF 2000MM DINrail,material:Galvanized,unperforated,2MeterLength DIN 导轨 顶帽式, NS35 无孔型, 2000mm x 35mm x 15mm
1053001
Phoenix Contact
Terminal Block Tools & Accessories 10.2mm BLANK STRIP Connector Accessories Zack Marker Strip Unprinted 10 Section For Individual Labeling With M-PEN White Polyamide CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1053001 Marker Strip Terminal Block, Series: ZB ZBMarkingStrip;TermBlk;10.2mmpitch;Blank Phoenix Contact ZB 系列 标记条
1007248
Phoenix Contact
Terminal Block Tools & Accessories SBS10:UNBEDRUCKT Connector Accessories Marker Card Cellulose Acetate White MARKER CARD UNPRINTED PLASTIC MARKERCARDS,UNPRINTED
1201895
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Copper, Unperforated, 1.5mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM UNSLOT 2M NS35/15CUUNPERF2000MM
1201714
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Unperforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M DIN rail,unperforated,steel,35x15x2000mm DINRail;Steel;Chromated;15mm;35mm;2Meterlength
0801704
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35X7.5MM UNSLOT ALUM 2M Din Rail, Material Aluminum, Unperforated, Height 7.5mm, Width 35mm, Length 2 M DINRail,Aluminum,unperforated,height7.5mm,width35mm,2meterslength
0801762
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35MMX7.5MM UNSLOT 2M Din Rail, Material Copper, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2 M DINrail,Copper,unperforated,height7.5mm,width35mm,eachpiece2MTR
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
1201730
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Perforated, Height 15mm, Width 35mm, Length 2m DIN RAIL 35MMX15MM SLOTTED 2M MountingRail,Perforated,35x15mm,eachpieceis2meters
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1201002
Phoenix Contact
Mounting Hardware NS32 PERF 2 METER PRICED PER METER G-Profile DIN Rail, Material Steel, Perforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32MMX15MM SLOTTED 2M Accessories, Zack strip, unprinted, strips with 10 labels for individual labeling with M-PEN or CMS system, for terminal block width: 6.2 mm, color: white G-profileDINrail,Steel,perforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 多孔型, 2000mm x 32mm x 15mm

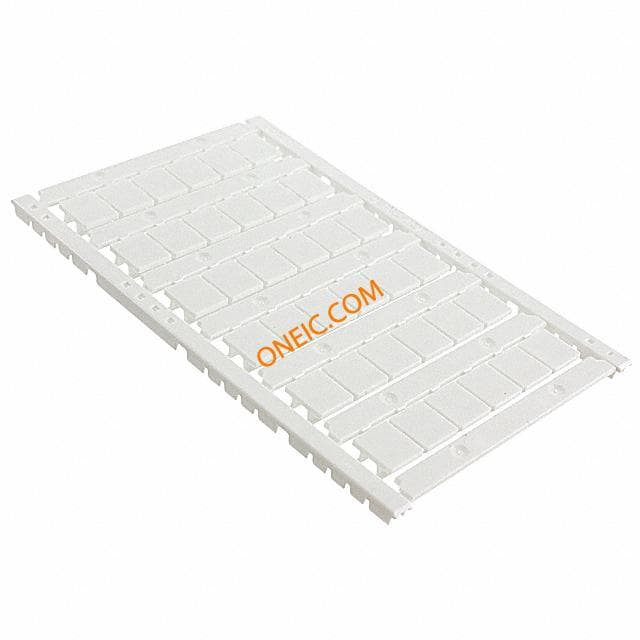

0829142
