0443049
| 制造商 | Phoenix Contact GmbH & Co. KG |

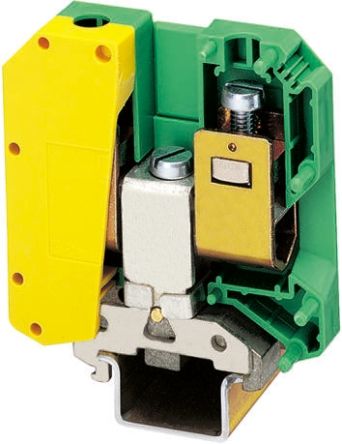

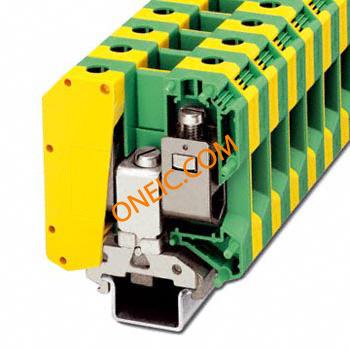

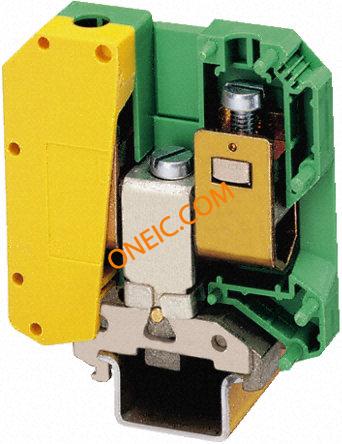

| 描述 | DINレール・ターミナルブロック USLKG 50 TERM BLOCK GROUNDING GRN/YEL Non-Fuse DIN Rail Terminal, 150A, Green/Yellow ,Screw Down Termination DIN Rail Terminal Blocks USLKG 50 Conn Ground Terminal Blocks F 2 POS Screw ST 150A Conn;TermBlk;DINRail;Ground;Screw;16-70sq.mm;6-1/0AWG;20mmW;Grn-YL Phoenix Contact USLKG 系列 绿色/黄色 接地模块化接线排 , 150A |
| 分类 |
商业参数
| 产品类别 | DIN Rail Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - IEC | 150A | 最大额定电流 | 150A |
机械参数
| 颜色 | Green, Yellow | 宽度 | 20 mm |
| 高度 | 81.5 mm, 83.5 mm | 长度 | 70.5 mm |
| 重量 | 6.583885 oz | 导线线规 | 6 → 0 AWG |
| 端接方式 | Screw Down | 安装类型 | NS 32, NS 35/7.5, NS 35/15 |
| 电缆材料 | 16 → 50 mm², 25 → 50 mm² | 安装样式 | DIN Rail |
| 剥线长度（范围） | 24mm | 端子宽度 | 20.0mm |
| 端接排数 | 螺钉拧紧 | 端接样式 | Screw |
| 连接器颜色 | Green/Yellow | 触点数 | 2 |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 1/0-6 AWG | 线规或范围 - mm² | 16-70mm² |
产品信息
| 类型 | Ground, Earth | 系列 | USLKG |
| 叠层数 | 单层 | 层数 | 1 |
