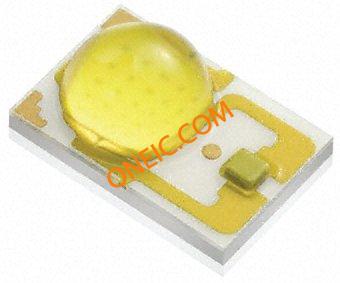

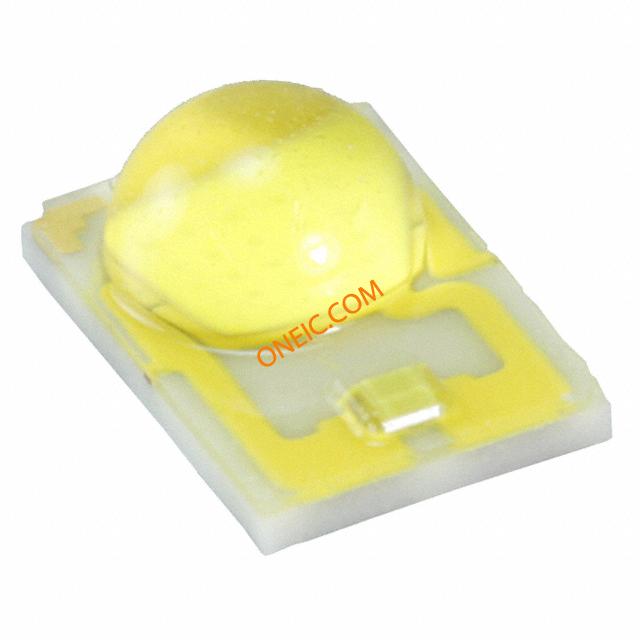

LXW8-PW35
| 制造商 | NXP Semiconductors N.V. |
| 描述 | LED LUXEON REBEL WHITE SMD Luxeon Rebel LED ES White 3500K 160lm+ High Power LEDs - White White, 3500K 160lm, 700mA LED, LUXEON REBEL, ES, 160LM, 3500K |
| 分类 |
商业参数
| 商标名 | LUXEON | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85414010 |
电气参数
| 光通量 | 252 lm | 视角 | 120° |
| 输出电流 | 700mA | 供电电压 | 2.9V |
| LED正向电流 | 700 mA | LED正向电压 | 3.5 V |
| 最大额定电流 | 1A | 光效 @ 测试电流 | 103 lm/W |
| 25°C时测试电流下的光通量 | 185 lm | 直流正向电流（If）（最大） | :1A |
机械参数
| 宽度 | 3.05 mm | 高度 | 1.98 mm |
| 长度 | 4.49 mm | 重量 | 0.001 |
| LED颜色 | White | 包装方式 | Tape & Reel (TR) |
| 灯颜色 | 3500 K | 透镜样式 | Circular |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 3 | 光学材料（应为封装材料） | :- |
| 封装形式 | 3-SMD, No Lead | 材料表面处理 | :- |
| 包装数量 | 4.49 x 3.05 x 1.98mm | 背景色 | 3500K |
| 照明颜色 | Warm White | 显色指数（CRI） | 85 |
产品信息
| 系列 | LUXEON Rebel ES | 色温 (K) | 3465K |
| LED数量 | 1 | ||
环境参数
| 工作温度 | - 40 C | 封装热阻 | 6°C/W |
| 光通量 @ 电流/温度 | 252 lm | ||
