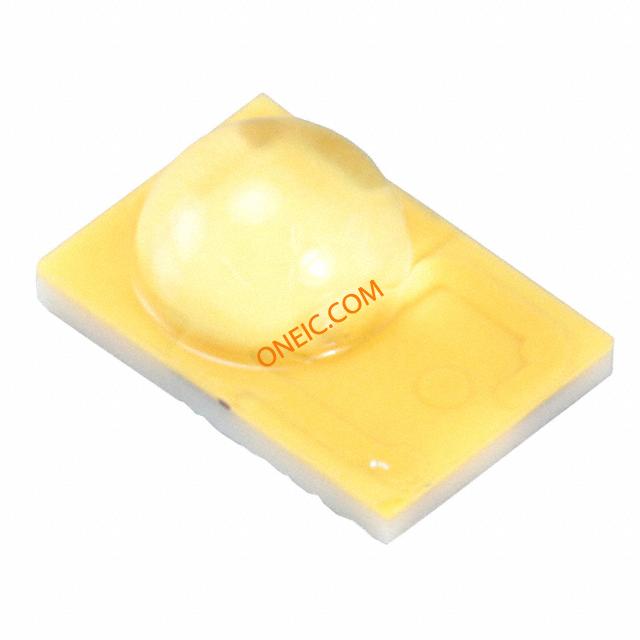

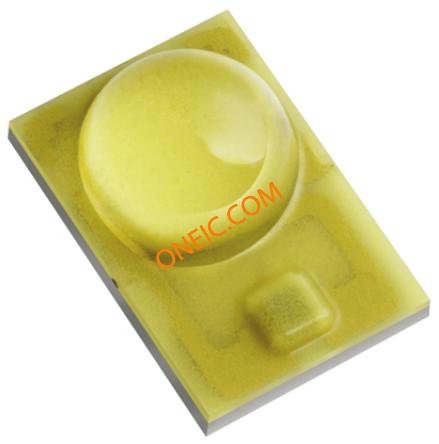

LXA7-PW40
| 制造商 | NXP Semiconductors N.V. |
| 描述 | LED LUXEON R SMD LUXEON R LED White 4000K 200lm min High Power LEDs - White Neutral White, 4000K 200lm, 700mA |
| 分类 |
商业参数
| 商标名 | LUXEON | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 光通量 | 292 lm | 视角 | 120° |
| 输出电流 | 700mA | 供电电压 | 2.81V |
| LED正向电流 | 700 mA | LED正向电压 | 2.85 V |
| 最大额定电流 | 1A | 光效 @ 测试电流 | 109 lm/W |
| 光通量 @ 85°C, 测试电流 | 215 lm | ||
机械参数
| 宽度 | 3.05 mm | 高度 | 1.98 mm |
| 长度 | 4.49 mm | LED颜色 | White |
| 包装方式 | Tape & Reel (TR) | 灯颜色 | 4000 K |
| 透镜样式 | Circular | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | 2 |
| 封装形式 | 3-SMD, No Lead | 包装数量 | 4.49 x 3.05 x 1.9mm |
| 背景色 | 4000K | 照明颜色 | Neutral White |
| 显色指数（CRI） | 75 | ||
产品信息
| 系列 | LUXEON R | 色温 (K) | 3985K (5-Step SDCM MacAdam Ellipse) |
| LED数量 | 1 | ||
环境参数
| 工作温度 | - 40 C | 封装热阻 | 6°C/W |
| 光通量 @ 电流/温度 | 292 lm | ||
