点击放大查看

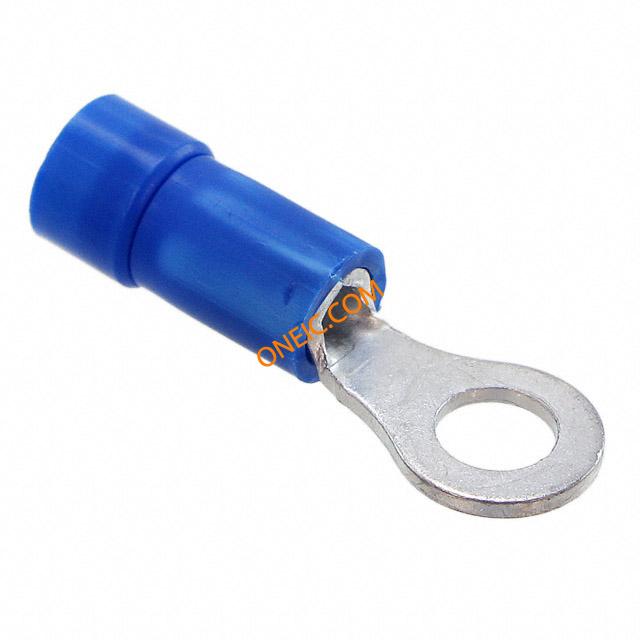

PV14-8R-M
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 14-16AWG 23.4mm 7.9mm Tin Bulk Terminals RING 16-14 AWG # 8 TERM RING VYL 16-14AWG #8 TERMINAL,RINGVINYLINSULATED;16-14AWG;#8STUD Ring Terminal, 16-14 AWG, #8 stud size, vinyl insulated, funnel entry, pack of 1000 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
机械参数
| 颜色 | Blue | 深度 | 7.9 mm |
| 长度 | 0.92 in | 重量 | 2.430 lbs |
| 镀层 | Tin | 包装方式 | Bulk |
| 厚度 | 0.032" (0.81mm) | 绝缘类型 | Insulated |
| 螺钉尺寸 | 8 | 导线线规 | 14-16 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.16 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 总宽度 | 0.31" | 触头材料 | Copper |
| 总长度 | 0.920" (23.37mm) | 包装数量 | 1000 |
| 主要材料 | Ring | 端接样式 | Crimp |
| 绝缘直径 | 0.170" (4.32mm) | 绝缘材料 - 类型 | Vinyl |
| 外缘宽度 | 0.310" (7.87mm) | 绝缘材料 - 材质 | Vinyl |
产品信息
| 类型 | Ring Tongue Terminal | 系列 | PV |
| 产品特性 | Brazed Seam | 制造商全称 | PV14Series |
