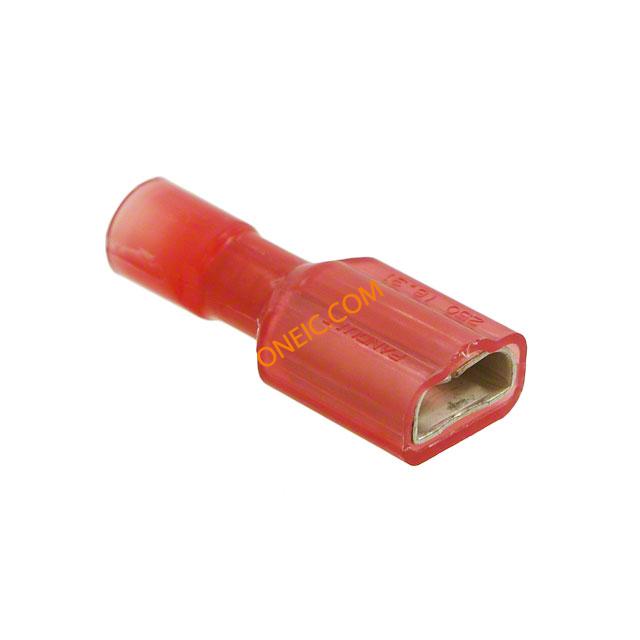

DNF18-250FIB-M
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 21.3mm 8.9mm Tin Bulk Terminals FML COUPLER 22-18 DISCONN FEMALE INS 22-18AWG .25" DISC; NYLON; FULLY-INSUL The DNF18-250FIB-M is red, fully insulated nylon female disconnect. This part uses a 22-18 AWG wire gauge and measures .250" ... The DNF18-250FIB-M is red, fully insulated nylon female disconnect. This part uses a 22-18 AWG wire gauge and measures .250" x .032" (6.35mm x 0.81mm) Product Highlights: Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost Fully insulated design provides protection from electrical shorts Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Internal barrel serrations assure good wire contact and maximum tensile strength Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) Coupler, male, and female parts sold separately TERMINAL, FEMALE DISCONNECT, 0.25IN, RED Conn;CrimpTerminals;Disconnect;Female;22-18AWG;Nylon;Red;Tabsz.0.250 Female Disconnect, nylon fully pre-insulated, funnel entry, 22-18 AWG, .250 X .032 tab size, pack of 1000 Female disconnect, nylon fully insulated, funnel entry, 22 18 AWG, .250 X .032 tab size |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 20 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
机械参数
| 颜色 | Red | 深度 | 8.9 mm |
| 长度 | .28 in | 重量 | 2.500 lbs |
| 镀层 | Tin | 包装方式 | Bulk |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 1/4 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 总宽度 | 0.35" |
| 触头材料 | Brass | 绝缘颜色 | :Red |
| 总长度 | 0.840" (21.34mm) | 包装数量 | 1000 |
| 主要材料 | QuickDisconnect | 端接样式 | Crimp |
| 绝缘直径 | 0.136" (3.45mm) | 绝缘材料 - 类型 | Nylon |
| 线规或范围 - AWG | :22AWG | ||
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | Female |
| 系列 | DNF | 产品特性 | Serrated Termination |
| 制造商全称 | DNF18Series | ||
