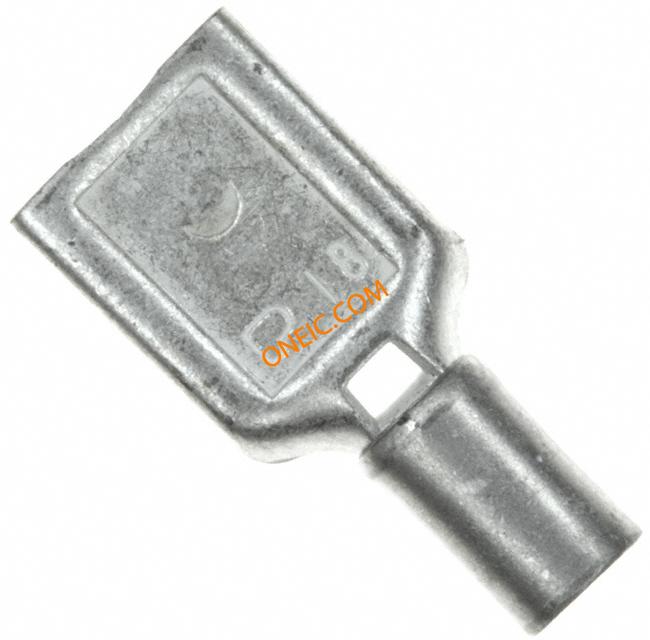

D18-250-M
| 制造商 | Panduit Corp. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 16.76mm 7.62mm Tin Bulk Terminals F DISC 22-18AWG .250 DISC FEMALE NON INS 22-18AWG |
| 分类 |
商业参数
| 产品 | Disconnects | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 7.62 | 长度 | 0.66 in |
| 重量 | 2.100 lbs | 镀层 | Tin |
| 包装方式 | Bulk | 插片宽度 | 0.250" (6.35mm) |
| 绝缘类型 | Not Insulated | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.12 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 接触镀层 | Tin | 触头材料 | Brass |
| 总长度 | 0.720" (18.29mm) | 端接样式 | Crimp |
| 绝缘材料 - 类型 | Non-Insulated | ||
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | Female |
| 系列 | D18 | 产品特性 | Serrated Termination |
