EECS0HD334V
| 制造商 | Panasonic Corporation |
| 描述 | Cap 0.33F 5.5V -20% to 80% 1000 hr (10.5 X 5.5 X 11.5mm) Radial Stacked Coin 5mm 70°C Bulk SD 0,33F 5,5V -20+70% 10x11 Panasonic 0.33F -20 to +80% 5.5V dc Through Hole Electric Double Layer Capacitor Cap Supercap 0.33F 5.5V -20% to 80% Radial Stacked Coin 5mm 1000h 70C Bulk CAPACITOR, 0.33F, 5.5V Capacitor: electrolytic; backup capacitor, supercapacitor; THT Ultra capacitor 0.33 F 5.5 VDC, EECS0HD334V, Panasonic Automotive & Industrial Systems Panasonic 0.33F 电双层电容器 -20 → +80% Tolerance SD Series 5.5 V 直流 通孔 |
| 分类 |
商业参数
| 最小起订量 | 200 | 单位包装 | 200 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 海关税号 | 85322900 |
| 汽车级 | NO | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | ||
电气参数
| 电压 | 5.5 Vdc | 容差 | -20 to 80 % |
| 电容 | 0.33 F | 额定电压 | :5.5V |
| 电池节数 | 1S | 标称电压 | 5.5V |
| 输入电容值 | :Coin | 电容 @ Vr, F | 0.0014Wh |
| 电阻公差 | -20% | 最小供电电压 | 5.5V |
| 电容 @ 频率 | 0.33F | ESR（等效串联电阻） | 75Ohm |
机械参数
| 深度 | 5.5(Max) mm | 间距 | 5mm |
| 高度 | 11.5mm | 长度 | 5.5mm |
| 重量 | 0.01 | 直径 | 10.5(Max) mm |
| 包装方式 | Bulk | 本体尺寸 | Ø11.5 x 5.5mm |
| 结构 | Stacked Coin | 引脚间距 | 5 mm |
| 引脚直径 | 0.8mm | 柱间距 | 5 mm |
| 安装类型 | Through Hole | 端子类型 | :PCB Pins |
| 内径（孔径） | :0.8mm | 安装样式 | Through Hole |
| 引脚数 | :2 | 封装形式 | 10.5(Max) X 5.5(Max) X 11.5(Max) |
| 总长度 | Not Required mm | 包装数量 | 200 |
| 尺寸/外形 | 10.5 Dia. x 11.5mm | 连接器间距 | 5mm |
| 端接样式 | Radial | 外径 | :10.5mm |
| 引线长度 | :3mm | ||
产品信息
| SPG | 200 | 样式 | COIN |
| 能量 | 0.0014Wh | 系列 | :SD |
| 内容 | NONElitre | 匹配码 | SUPC0,33F5,5V5,0 |
| 电气寿命 | 1000h | 单元数量 | 1 |
| 标准交期 | 20 weeks | ||
环境参数
| 测试温度 | -25°C | 工作温度 | -25 to 70 °C |
| 结工作温度 | :1000h | ||
文档与媒体
相关型号
MAL219612334E3
Vishay Intertechnology, Inc.
Cap 0.33F 5.5V -20% to 80% 1000 hr (13 X 7mm) Radial Stacked Coin 5mm T/R Supercapacitors / Ultracapacitors .33F 5.5V -20/+80% 13x7 Cap Supercap 0.33F 5.5V -20% to 80% Radial SMD 5mm 182uA 1000h 70C T/R Capacitor: electrolytic; supercapacitor; THT; 0.33F; 5.5V; Ø13x7mm Capacitor: electrolytic; backup capacitor, supercapacitor; THT

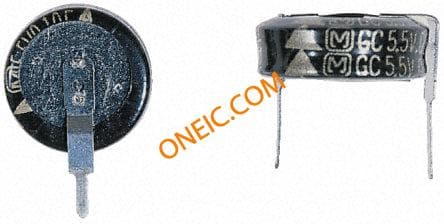

EECS0HD334H
