BXRA-40E1350-B-00
| 制造商 | OSRAM Opto Semiconductors GmbH |
| 描述 | LED ES RECT ARRAY WHITE 1610 LM ES RECT 1350 LM NEUT WHT ARRAY 4000K |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| SVHC | :No SVHC (20-Jun-2013) | 海关税号 | 85414010 |
电气参数
| 电压 | 30V | 波长 | 4000K |
| 光通量 | :1350lm | 视角 | :120° |
| 输出电流 | 500mA | 驱动电路 | No |
| LED正向电流 | :500mA | LED正向电压 | :30V |
| 最大额定电流 | 1A | 直流正向电流（If）（最大） | :1A |
机械参数
| 颜色 | White | 重量 | 0.01 |
| LED颜色 | :Neutral White | 包装方式 | :Each |
| 光学材料（应为封装材料） | :- | 连接器用途 | No |
| 材料表面处理 | :MSL 1 - Unlimited | 显色指数（CRI） | :80 |
产品信息
| 系列 | :ES Rectangular Array | 色温 (K) | :4000K |
| 配置 | Square | ||
环境参数
| 光通量 @ 电流/温度 | 1610 lm | ||
文档与媒体
相关型号
LM3404MA
Texas Instruments
LED Lighting Drivers IC LED DRVR HP CONST CURR 8-SOIC

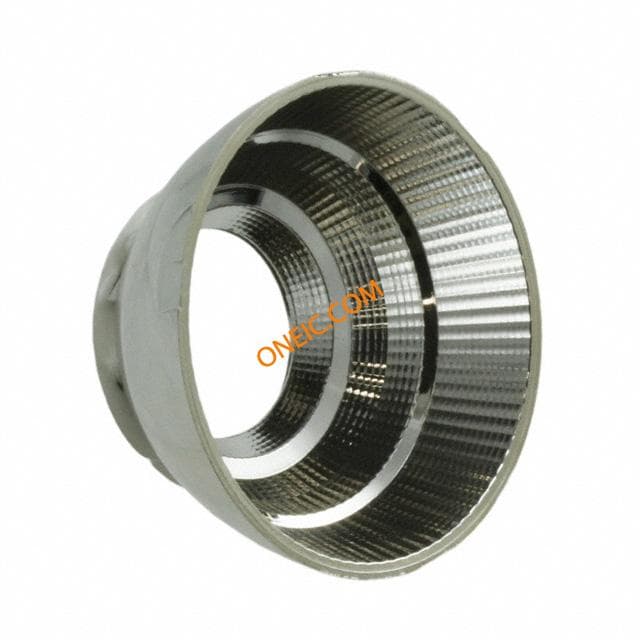

CA11183_BROOKE-W
