点击放大查看

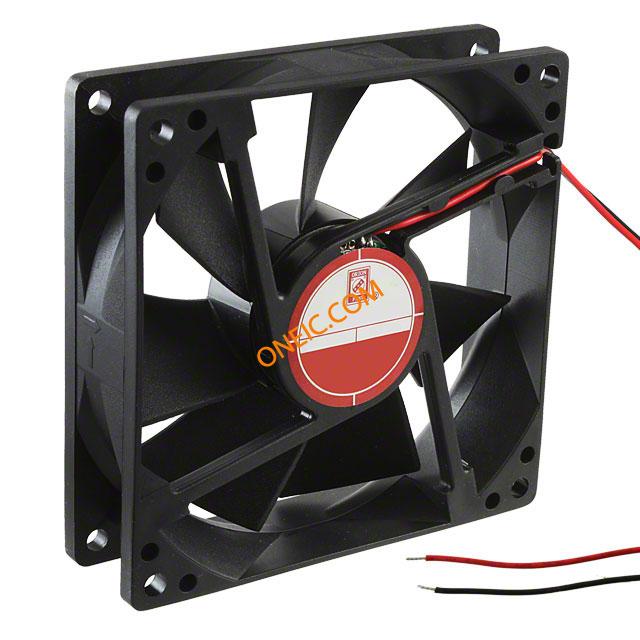

OD9225-48HB
| 制造商 | Orion Fans |
| 描述 | Fans 92x25mm 48VDC 33dBA 50CFM 2800RPM .09A FAN DC 48V 92.5X25MM 50CFM Fans Fan DC 92x25mm 48V 50CFM Ball DC Fan Ball Bearing 48V 0.09A 2800RPM 50CFM 33dB Flange Mount Fan;DC;48V;0.09A;92x92x25mm;Sq;50CFM;33dBA;2800RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 33 dB | 转速 | 2800RPM |
| 电压范围 | 32 ~ 56VDC | 额定电压 | 48VDC |
| 供电电压 | 48 V | 最大额定电流 | 0.090A |
机械参数
| RPM | 2800 RPM | 尺寸 | 3.6x1(92x25)In.(mm) |
| 风量 | 50.0 CFM (1.41m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CCW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.240 in H2O (59.8 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 92.5mm L x 92.5mm H x 25mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 3.6x1(92x25)In.(mm) |
| 总体尺寸 | 3.6x3.6x1In. | ||
产品信息
| 类型 | Square | 系列 | OD9225 |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | OD9225Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 40°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 50CFM | 结工作温度 | 80°C |
