点击放大查看

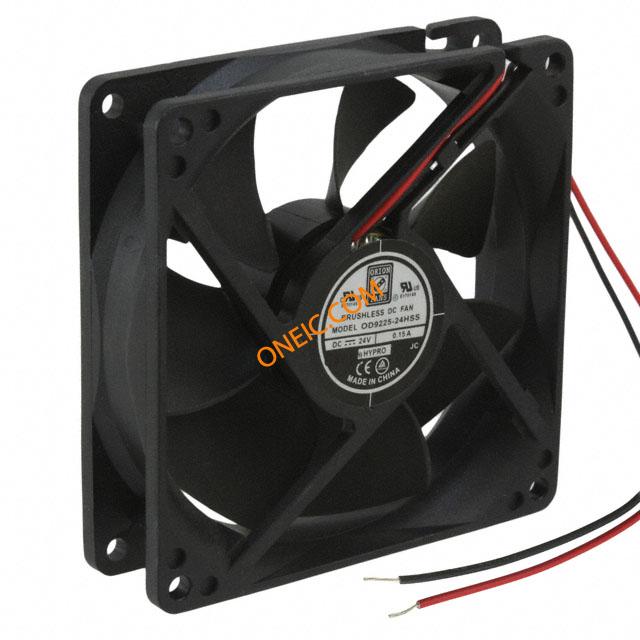

OD9225-24HSS
| 制造商 | |
| 描述 | Fans 24VDC .15A 2900RPM 52CFM 35dBA 92x25mm FAN DC 24V 92.5X25MM 52CFM Fans Fan DC 92x25mm 24V 52CFM Seal Slv Wire DC Fan Sleeve Bearing 24V 0.15A 3.4W 2900RPM 52CFM 35dB Flange Mount Fan;DC;24V;0.15A;92x92x25mm;Sq;52CFM;35dBA;2.9W;2900RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 零件号别名 | OD9225-24HSS |
| 产品类别 | Fans | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 35 dB | 转速 | 2900 RPM |
| 功率（瓦） | 3.40W | 额定功率 | 2.6 W |
| 额定电压 | 24VDC | 供电电压 | 24 V |
| 标称电压 | 24VDC | 最大额定电流 | 0.150A |
机械参数
| RPM | 2900 RPM | 尺寸 | 3.6x1(92x25)In.(mm) |
| 风量 | 52.0 CFM (1.47m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CCW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Sealed Sleeve |
| 静压 | 0.130 in H2O (32.4 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 92.5mm L x 92.5mm H x 25mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 3.6x1(92x25)In.(mm) |
| 总体尺寸 | 3.6x3.6x1In. | ||
产品信息
| 类型 | Square | 系列 | OD9225 |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | OD9225Series |
| 配置 | Square | ||
环境参数
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) | 自然散热热阻 | 52CFM |
| 结工作温度 | 70°C | ||
