点击放大查看

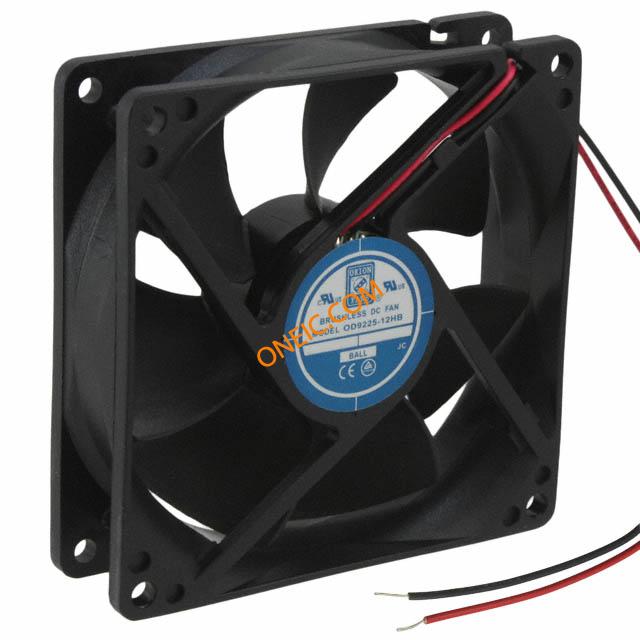

OD9225-12HB

制造商	Orion Fans
描述	Fans Fan 92x25 12VDC Ball Wire 50cfm 35dBA FAN DC 12V 92.5X25MM 53CFM DC Fan Ball Bearing 12V 0.25A 2900RPM 53CFM 35dB Flange Mount Fan;DC;12V;0.29A;92x92x25mm;Sq;53CFM;35dBA;2900RPM;Leadwires
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	产品类别	Fans
标准包装数量	1

合规参数

RoHS

RoHS Compliant

电气参数

噪声	35 dB	转速	2800 RPM
额定功率	120 mW	电压范围	7 ~ 17VDC
额定电压	12VDC	供电电压	12 V
最大额定电流	0.250A	噪声系数（dB典型值 @ f）	35 dB

机械参数

RPM	2900 RPM	尺寸	3.6x1(92x25)In.(mm)
风量	53.0 CFM (1.50m³/min)	风扇类型	Tubeaxial
材料（通用）	Plastic	旋转范围	CCW
端接方式	2 Wire Leads	轴承类型	Ball
操作力	0.130 in H2O (32.4 Pa)	静压	0.130 in H2O (32.4 Pa)
壳体材料	Polybutylene Terephthalate (PBT)	刀片材料	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
框架材料	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	主要材料	Fans
尺寸/外形	Square - 92.5mm L x 92.5mm H x 25mm W	端接样式	Wire Leads
风扇附件类型	3.6x1(92x25)In.(mm)	总体尺寸	3.6x3.6x1In.

产品信息

类型	Square	系列	OD9225
功能	DC	方向	ExhaustoverStruts
开关类型	DC	制造商全称	OD9225Series
配置	Square

环境参数

额定寿命	60000 hrs @ 40°C	工作温度	-4 ~ 176°F (-20 ~ 80°C)
自然散热热阻	53CFM	结工作温度	80°C

文档与媒体

PDF 文档

Orion Fan Catalog

PDF 文档

OD9225 Series

PDF 文档

od9225-6136.pdf

相关型号

G92-16B

Orion Fans

Fan Cords & Accessories Wire Fan Guard Black for Fan Size 92mm FAN GUARD METAL 92MM BLACK Fan Accessories Wire Fan Guard Black for Fan Size 92mm

¥5.6100

详情

GRM92-30

Orion Fans

Fan Cords & Accessories Fan Filter 92mm 30 Pores Media Black FAN FILTER 92MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;92mm Fan Accessories Fan Filter Kit 92mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 92mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;92mm

¥9.0515

详情

G92P

Orion Fans

Fan Cords & Accessories Plastic Fan Guard for Fan Size 92mm FAN GUARD PLASTIC 92MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;92mm (3.62 in) Fan Accessories Plastic Fan Guard for Fan Size 92mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,92mm(3.62in)

¥4.8593

详情

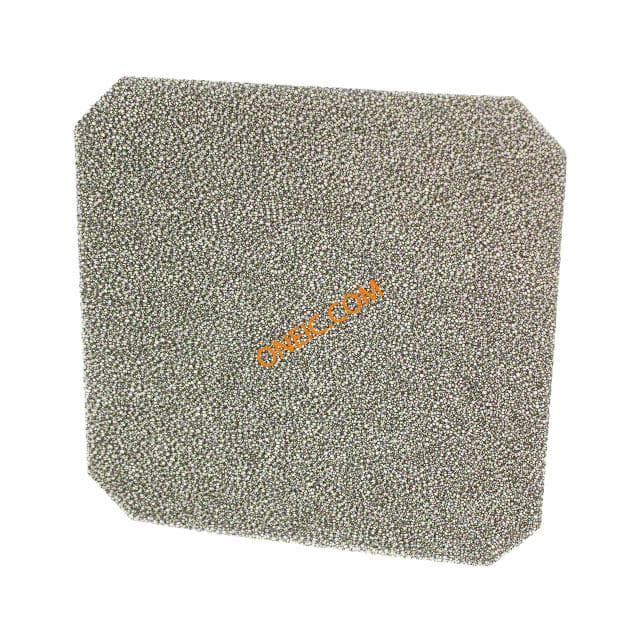

GRM92-45
