点击放大查看

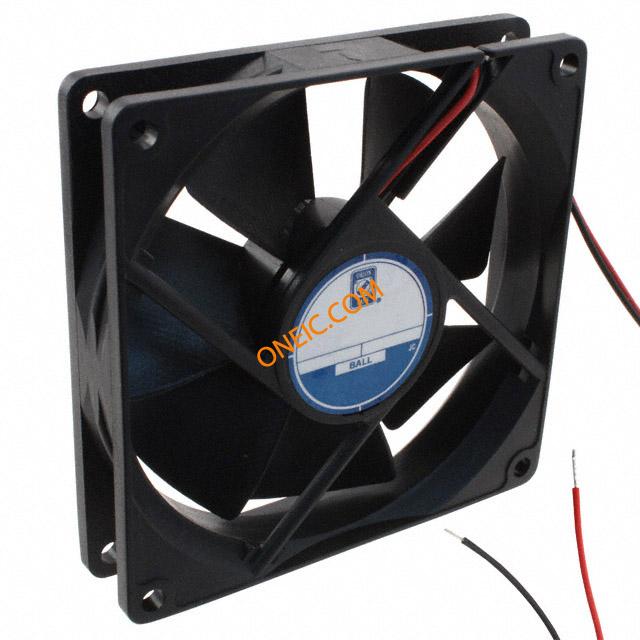

OD9220-12HB
| 制造商 | |
| 描述 | Fans Fan 92x20 12VDC Ball Wire 33cfm 32dBA FAN DC 92X20 12V 32CFM |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 33 dB | 转速 | 3000 RPM |
| 额定功率 | 290 mW | 电压范围 | 8 ~ 16VDC |
| 额定电压 | 12VDC | 供电电压 | 12 V |
| 最大额定电流 | 0.250A | 噪声系数（dB典型值 @ f） | 33 dB |
机械参数
| RPM | 2700 RPM | 尺寸 | Square - 92mm L x 92mm H x 20mm W |
| 风量 | 32.0 CFM (0.906m³/min) | 风扇类型 | Tubeaxial |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 操作力 | 0.130 in H2O (32.4 Pa) | 静压 | 0.130 in H2O (32.4 Pa) |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 尺寸/外形 | Square - 92mm L x 92mm H x 20mm W |
| 端接样式 | Wire Leads | ||
产品信息
| 系列 | OD9220 | 功能 | DC |
环境参数
| 额定寿命 | 65000 hrs @ 45°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
