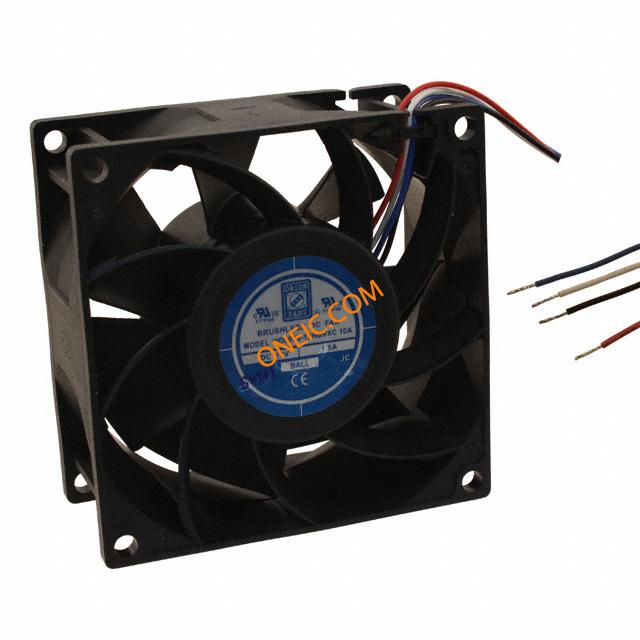

OD8038-12HBVXC10A
| 制造商 | Orion Fans |
| 描述 | 80X38 12V VANE 99CFM W/PWM-TACH Fans Vaneaxial 80x38 12V HiPrs 99CFM PWM&Tach |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 57 dB | 转速 | 6300 RPM |
| 功率（瓦） | 14.0W | 额定功率 | 14 W |
| 额定电压 | 12VDC | 供电电压 | 12 V |
| 最大额定电流 | 1.2A | ||
机械参数
| RPM | 6300 RPM | 风量 | 99.0 CFM (2.80m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | 4 Wire Leads |
| 轴承类型 | Ball | 静压 | 0.810 in H2O (201.8 Pa) |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 尺寸/外形 | Square - 80mm L x 80mm H x 38mm W |
| 端接样式 | Wire Leads | ||
产品信息
| 类型 | Axial Fans | 产品特性 | PWM Control; Speed Sensor (Tach) |
| 功能 | DC | ||
环境参数
| 额定寿命 | 50000 hrs @ 40°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
