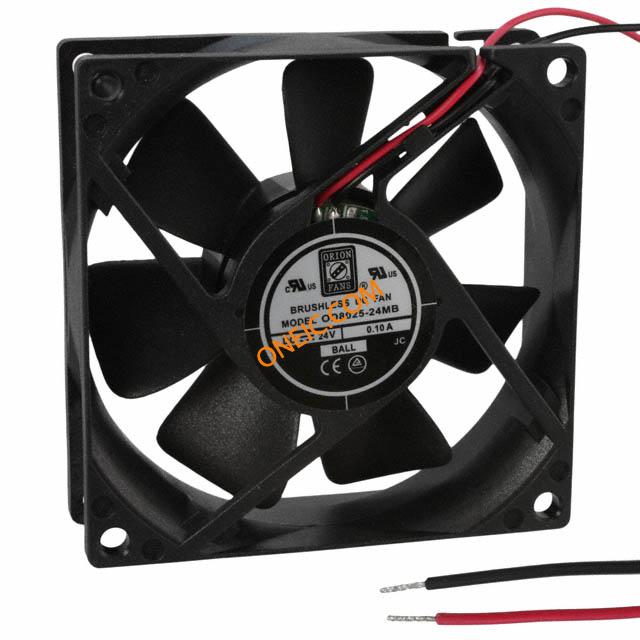

OD8025-24MB
| 制造商 | Orion Fans |
| 描述 | Fans Fan 80x25 24VDC Ball Wire 31cfm 28dBA FAN DC 80X25 24V 31CFM Fan;DC;24V;0.1A;80x80x25mm;Sq;31CFM;28dBA;1.67W;5500RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 28 dB | 转速 | 2500 RPM |
| 功率（瓦） | 1.67W | 额定功率 | 80 mW |
| 电压范围 | 12 ~ 28VDC | 额定电压 | 24VDC |
| 供电电压 | 24 V | 最大额定电流 | 0.080A |
机械参数
| RPM | 2500 RPM | 尺寸 | 3.2x1(80x25)In.(mm) |
| 风量 | 31.0 CFM (0.878m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.100 in H2O (24.9 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 80mm L x 80mm H x 25mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 3.2x1(80x25)In.(mm) |
| 总体尺寸 | 3.2x3.2x1In. | ||
产品信息
| 类型 | Square | 系列 | OD8025 |
| 功能 | DC | 方向 | IntakeoverStruts |
| 开关类型 | DC | 制造商全称 | OD8025Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 65000 hrs @ 45°C | 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
| 自然散热热阻 | 31CFM | 结工作温度 | 80°C |
文档与媒体
相关型号
GRM80-30
Orion Fans
Fan Cords & Accessories Fan Filter 80mm 30 Pores Media Black FAN FILTER 80MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;80mm Fan Accessories Fan Filter Kit 80mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 80mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;80mm
WMG80B
Orion Fans
Fan Cords & Accessories Guard 80mm Mesh Black FAN GUARD 80MM WIRE MESH BLACK Fan Accessories WireMeshGuard 80mm Black Finish
WMG80M
Orion Fans
Fan Cords & Accessories Guard 80mm Mill Mesh Filter Media FAN GUARD 80MM WIRE MESH NATURAL Mesh Guard; Wire Mesh; For 60mm; 80mm; 92mm; 120mm; and 172mm Fans; Filters Fan Accessories WireMeshGuard 80mm Mill Finish Filter Thrml Mgmt Access Fan Filter Screen 80mm Aluminum/Stainless Steel MeshGuard;WireMesh;For60mm,80mm,92mm,120mm,and172mmFans,Filters
G80-18
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 80mm FAN GUARD METAL 80MM Fan Guard; Steel (Wire); 2.81 in; Electroplated Nickel Chrome Fan Accessories Wire FanGuard Chrome for Fan Size 80mm Thrml Mgmt Access Finger Guard 80mm FanGuard;Steel(Wire);2.81in,ElectroplatedNickelChrome
G80-18B
Orion Fans
Fan Cords & Accessories Wire Fan Guard Black for Fan Size 80mm FAN GUARD METAL 80MM BLACK Fan Guard; Steel (Wire); 2.81 in; Black Anodized Fan Accessories Wire Fan Guard Black for Fan Size 80mm FanGuard;Steel(Wire),2.81in,BlackAnodized
G80P
Orion Fans
Fan Cords & Accessories Plastic Fan Guard for Fan Size 80mm FAN GUARD PLASTIC 80MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;80mm (3.15 in) Fan Accessories Plastic Fan Guard for Fan Size 80mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,80mm(3.15in)
GRM80-45
Orion Fans
Fan Cords & Accessories Fan Filter 80mm 45 Pores Media Black FAN FILTER 80MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;80mm Fan Accessories Fan Filter Kit 80mm 45 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 80mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;80mm

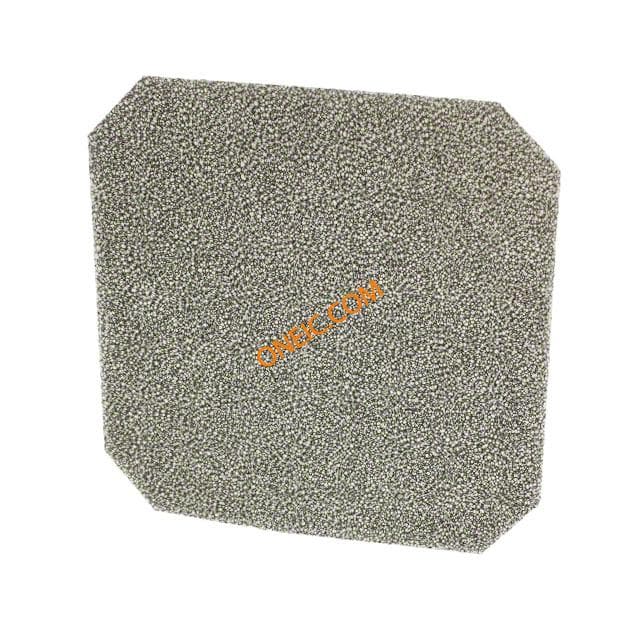

M80-45
Orion Fans
80MM FAN FILTER MEDIA 45PPM Fan Filter; Media; 45 PPI; 3.15 Fan Size FanFilter;Media;45PPI;3.15FanSize

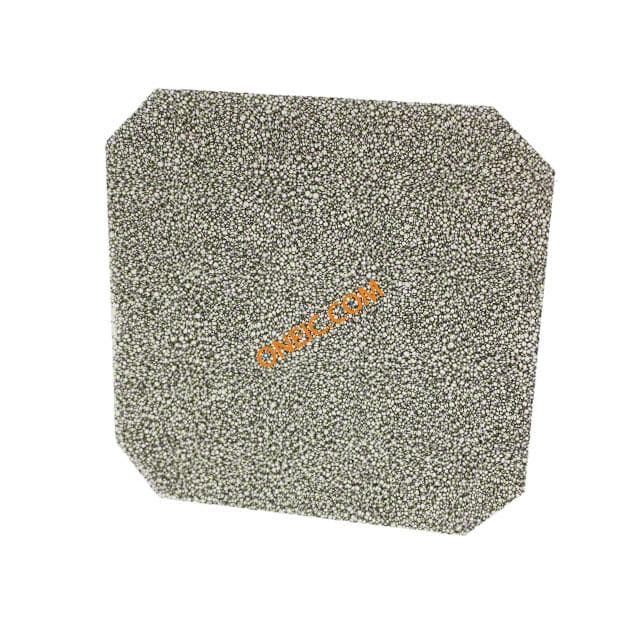

M80-30
