点击放大查看

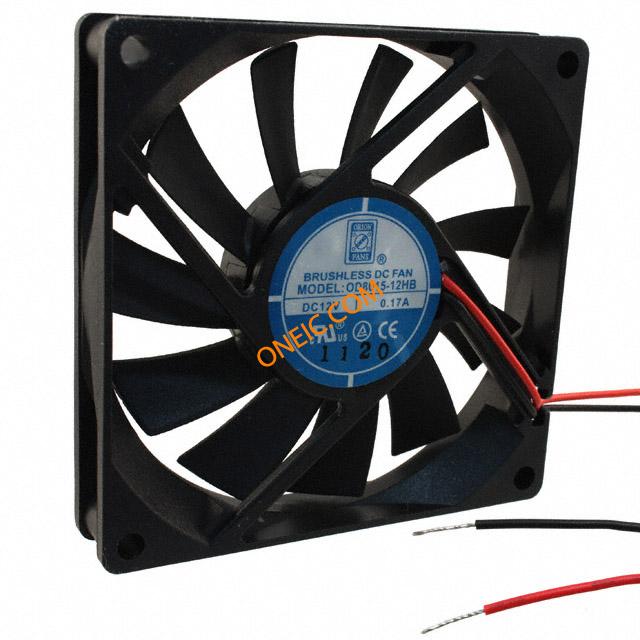

OD8015-12HB
| 制造商 | Orion Fans |
| 描述 | Fans Fan 80x15 12VDC Ball Wire 31cfm 33dBA FAN DC 80X15 12V 30CFM Fans 80x15mm 12VDC .09A 30cfm 33dBA 7Blade Fan;DC;12V;0.19A;80x80x15mm;Sq;30CFM;33dBA;3200RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 33 dB | 转速 | 3200 RPM |
| 额定功率 | 90 mW | 电压范围 | 8 ~ 16VDC |
| 额定电压 | 12VDC | 供电电压 | 12 V |
| 最大额定电流 | 0.090A | ||
机械参数
| RPM | 3200 RPM | 尺寸 | 3.2x0.6(80x15)In.(mm) |
| 风量 | 30.0 CFM (0.850m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CCW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.110 in H2O (27.4 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 80mm L x 80mm H x 15mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 3.2x0.6(80x15)In.(mm) |
| 总体尺寸 | 3.2x3.2x0.6In. | ||
产品信息
| 类型 | Square | 系列 | OD8015 |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | OD8015Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 45°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 30CFM | 结工作温度 | 80°C |
