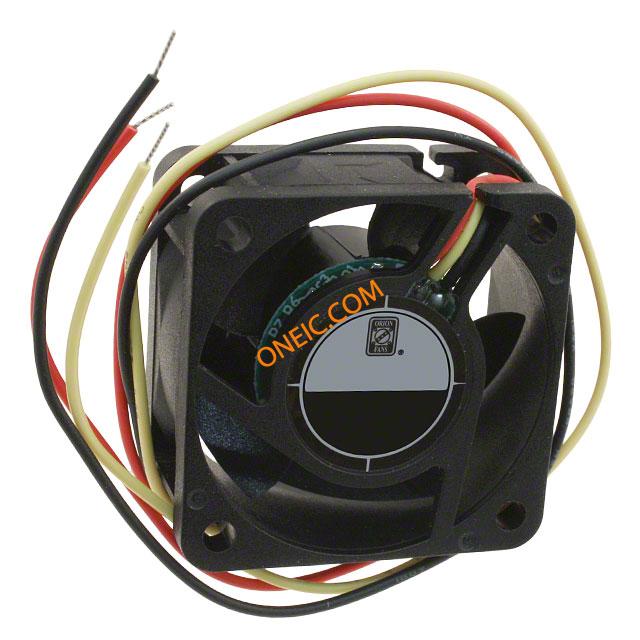

OD4020-24HB02A
| 制造商 | Orion Fans |
| 描述 | FAN DC 40X20 24V W/ O/C ALARM Fans Fan DC 40x20 24V Ball O/C Alarm Fan;DC;24V;40x40x20mm;Sq;9CFM;32dBA;7800RPM;Ball;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 32 dB | 转速 | 7800 RPM |
| 电压范围 | 10 ~ 27VDC | 额定电压 | 24VDC |
| 供电电压 | 24 V | 最大额定电流 | 0.090A |
机械参数
| RPM | 7800 RPM | 尺寸 | 1.6x0.8(40x20)In.(mm) |
| 风量 | 9.0 CFM (0.255m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Plastic | 旋转范围 | CCW |
| 端接方式 | 3 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.300 in H2O (74.7 Pa) | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 主要材料 | Fans | 尺寸/外形 | Square - 40mm L x 40mm H x 20mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 1.6x0.8(40x20)In.(mm) |
| 总体尺寸 | 1.6x1.6x0.8In. | ||
产品信息
| 类型 | Axial Fans | 产品特性 | Locked Rotor Sensor |
| 功能 | DC | 方向 | IntakeoverStruts |
| 开关类型 | DC | 制造商全称 | OD4020Series |
| 配置 | Square | ||
环境参数
| 额定寿命 | 60000 hrs @ 45°C | 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| 自然散热热阻 | 9CFM | 结工作温度 | 80°C |
文档与媒体
相关型号
GRM40-45
Orion Fans
Fan Cords & Accessories Fan Filter 40mm 45 Pores Media Black FAN FILTER 40MM 45PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 45ppi;40mm Fan Accessories Fan Filter Kit 40mm 45 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 40mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam45ppi;40mm
GRM40-30
Orion Fans
Fan Cords & Accessories Fan Filter 40mm 30 Pores Media Black FAN FILTER 40MM 30PPI Fan;Filter Kit;Retainer and Guard UL94V-0;Media PU Foam 30ppi;40mm Fan Accessories Fan Filter Kit 40mm 30 Pores Media Black Thrml Mgmt Access Fan Filter Guard Assembly 40mm Fan;FilterKit;RetainerandGuardUL94V-0;MediaPUFoam30ppi;40mm
G40P
Orion Fans
Fan Cords & Accessories Plastic Fan Guard for Fan Size 40mm FAN GUARD PLASTIC 40MM Fan;Finger Guard;Plastic;PBT;UL94V-0 Thermoplastic;40mm (1.57 in) Fan Accessories Plastic Fan Guard for Fan Size 40mm Fan,FingerGuard,Plastic,PBT,UL94V-0Thermoplastic,40mm(1.57in)
G40-2
Orion Fans
Fan Cords & Accessories Wire FanGuard Chrome for Fan Size 40mm FAN GUARD METAL 40MM Fan Guard; Steel (Wire); 1.57 in.; Electroplated Nickel Chrome/Black Anodized Fan Accessories Wire FanGuard Chrome for Fan Size 40mm Thrml Mgmt Access Finger Guard 40mm FanGuard;Metal;NickelChromeElectroplated;1.26inDia;0.16inThickness

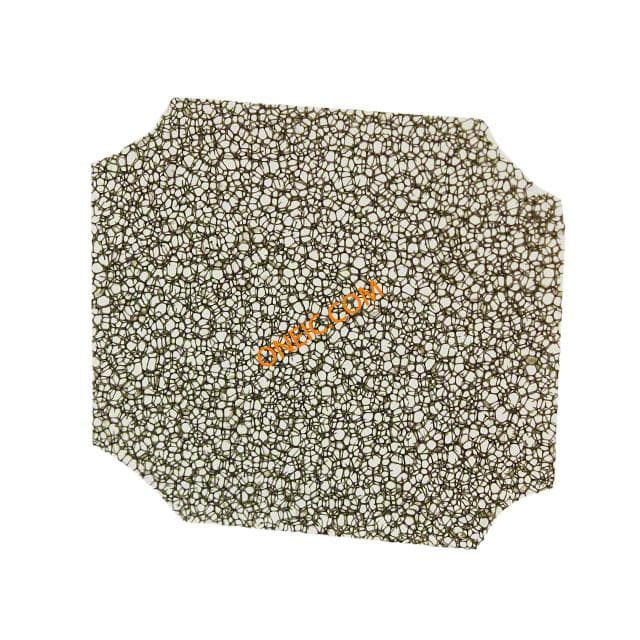

M40-30
Orion Fans
40MM FAN FILTER MEDIA 30PPM

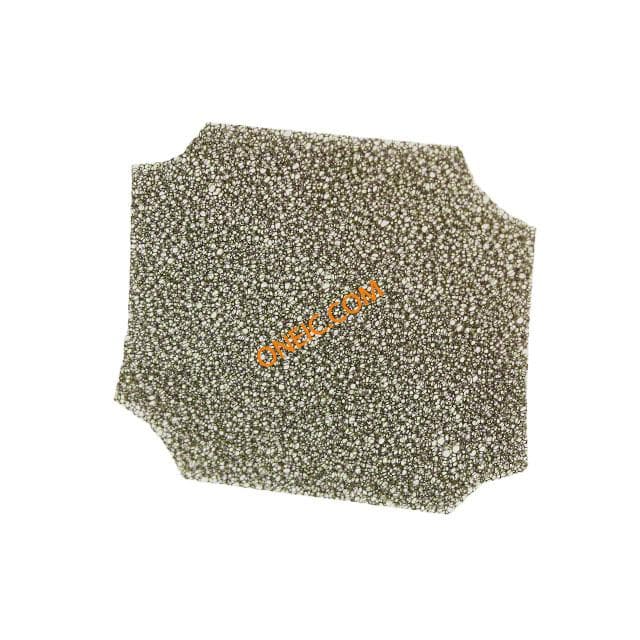

M40-45
