点击放大查看

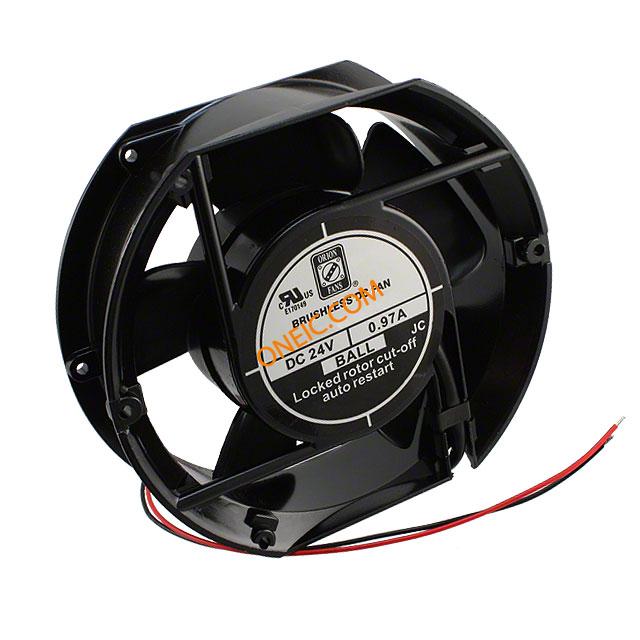

OD172SAP-24HB
| 制造商 | Orion Fans |
| 描述 | Fans Fan 172x51 24VDC Ball Wire 272cfm FAN DC 172X150X50.8MM 24V 235CFM DC Fan Ball Bearing 24V 0.97A 3700RPM 235CFM 50dB Flange Mount Fan;DC;24V;0.97A;172x150x51mm;Obround;235CFM;52dBA;3300RPM;Leadwires |
| 分类 |
商业参数
| 产品 | Fans | 产品类别 | Fans |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 噪声 | 52 dB | 转速 | 3300 RPM |
| 额定功率 | 1.8 W | 电压范围 | 15 ~ 28VDC |
| 额定电压 | 24VDC | 供电电压 | 24 V |
| 最大额定电流 | 0.970A | ||
机械参数
| RPM | 3300 RPM | 尺寸 | 6.7x5.9x2(172x150x51)In.(mm) |
| 风量 | 235.0 CFM (6.65m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | DiecastAluminum | 旋转范围 | CW |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 静压 | 0.790 in H2O (196.8 Pa) | 壳体材料 | Aluminum |
| 刀片材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 50.8mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 6.7x5.9x2(172x150x51)In.(mm) |
| 总体尺寸 | 6.8x5.9x2In. | ||
产品信息
| 类型 | Obround | 系列 | OD172SAPL |
| 功能 | DC | 方向 | IntakeoverStruts |
| 开关类型 | DC | 制造商全称 | OD172SSeries |
| 配置 | Obround | ||
环境参数
| 额定寿命 | 40000 hrs @ 60°C | 工作温度 | -4 ~ 167°F (-20 ~ 75°C) |
| 自然散热热阻 | 235CFM | 结工作温度 | 75°C |
